Backplane for up to nine 3.5-inch drives

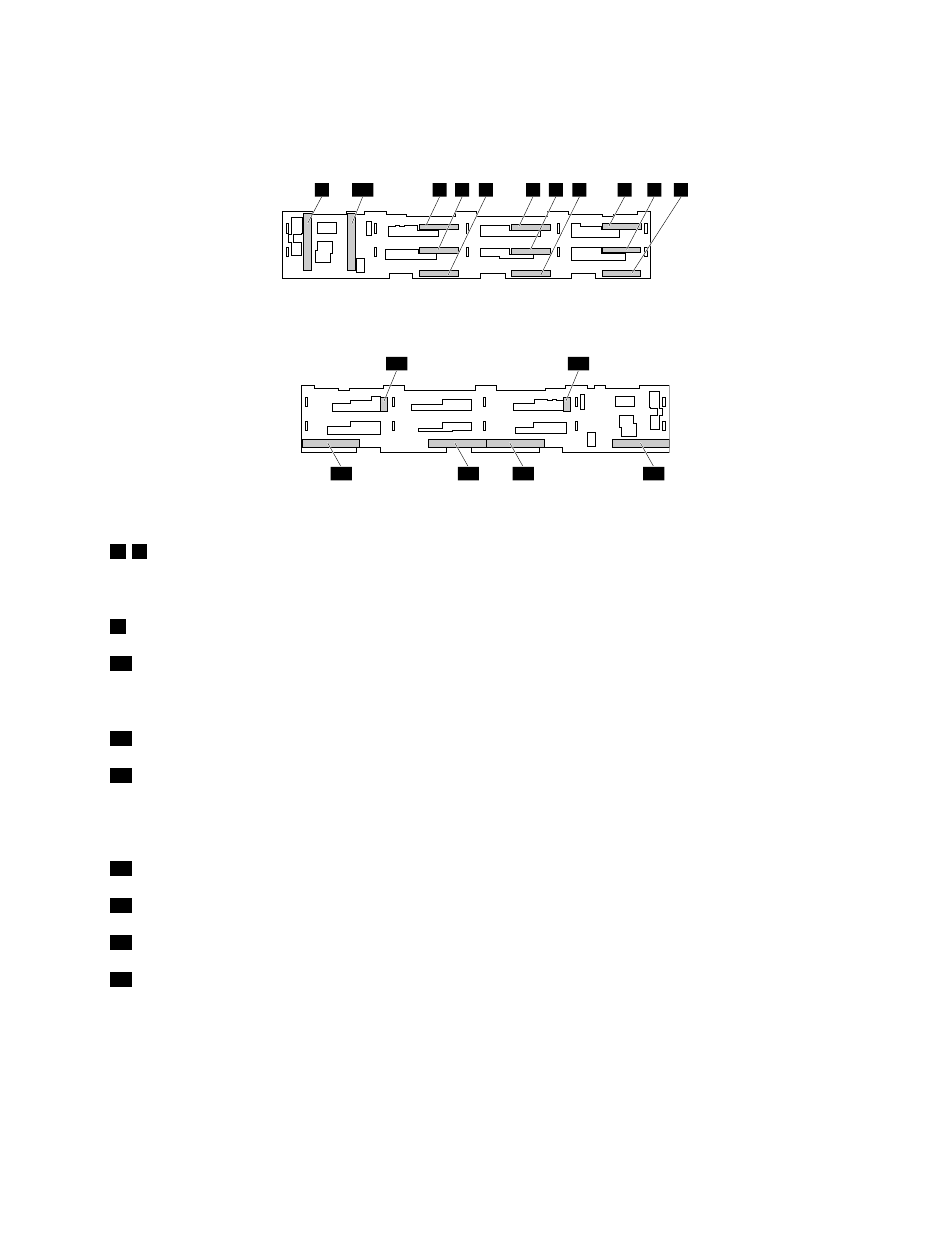

The following illustrations show the slots and connectors on the backplane for up to nine 3.5-inch drives.
0 1 2 3 4 5 6 7 8 10 9
Figure 22. Front view of the backplane for up to nine 3.5-inch drives
11 12
13 14 15 16
Figure 23. Rear view of the backplane for up to nine 3.5-inch drives
0 – 8 Slot 0–slot 8
Used to connect 3.5-inch drives.
9 AnyRAID adapter slot 4
10 AnyRAID adapter slot 5
Used to connect an interposer card.
11 10-pin power connector 0
12 10-pin power connector 1
Used to connect to the 10-pin backplane power connector on the system board or on the power distribution
board to provide power to the backplane.
13 AnyRAID adapter slot 0
14 AnyRAID adapter slot 1
15 AnyRAID adapter slot 2
16 AnyRAID adapter slot 3
Used to connect an AnyRAID adapter.
Chapter 3 . Product overview 39
