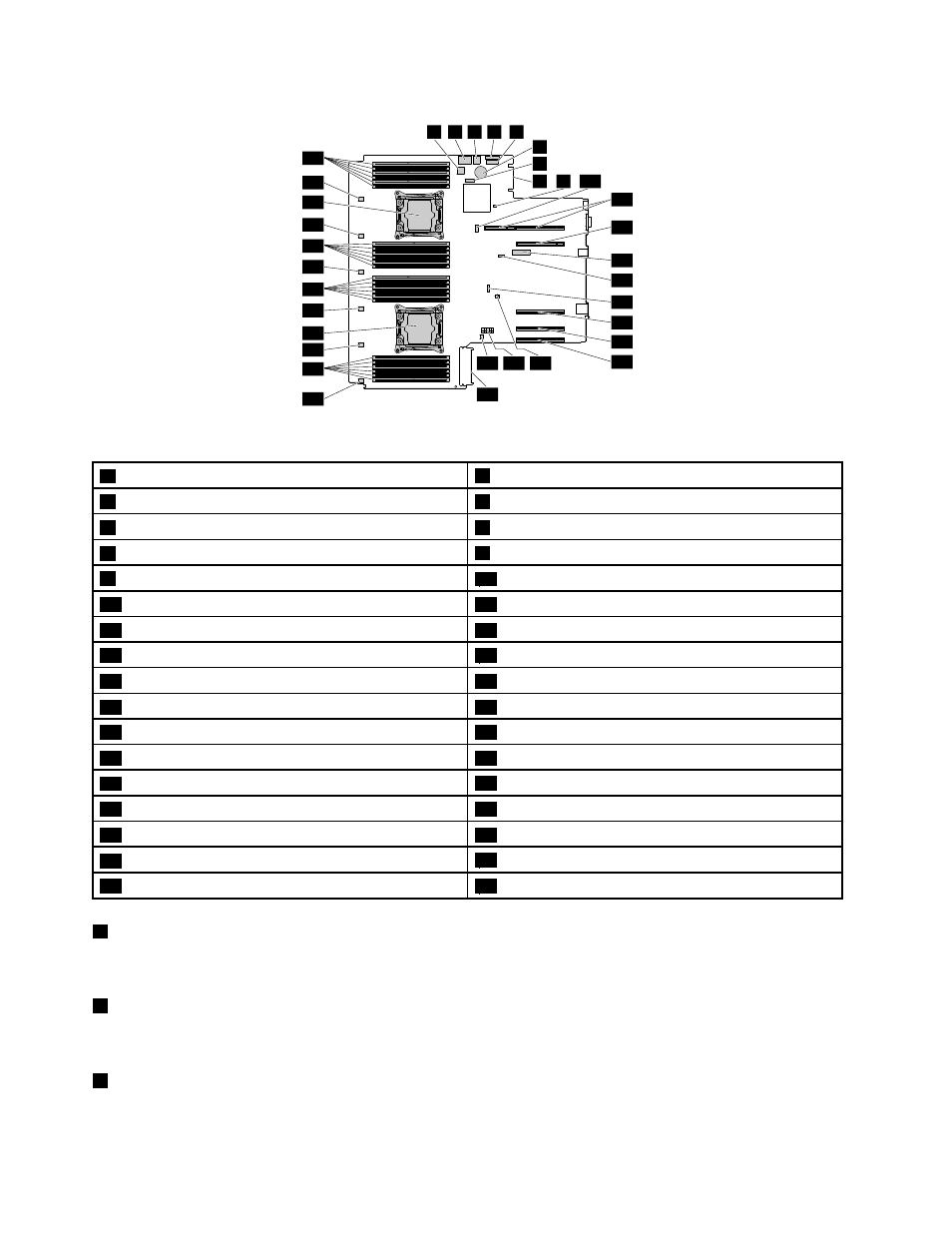

Figure 32. System board components
1 SATA connector 1 (ports 4-7) 2 AnyRAID connector 0-1
3 SATA connector 0 (ports 0-3) 4 Front panel connector 2
5 Front panel connector 1 6 Coin-cell battery
7 SATA connector (optical drive) 8 AnyFabric connector
9 RAID upgrade key connector 10 SD module connector
11 Riser card assembly 1 slot 12 PCIe slot 4
13 TPM connector 14 TSM connector
15 Rear-backplane signal connector 16 Riser card assembly 2 slot
17 PCIe slot 7 18 PCIe slot 8
19 Rear-backplane power connector 20 Front-backplane power connector
21 Intrusion switch connector 22 Power-distribution-board connector
23 System fan 6 connector 24 Microprocessor 2 memory slots (6)
25 System fan 5 connector 26 Microprocessor 2 socket
27 System fan 4 connector 28 Microprocessor 2 memory slots (6)
29 System fan 3 connector 30 Microprocessor 1 memory slots (6)
31 System fan 2 connector 32 Microprocessor 1 socket
33 System fan 1 connector 34 Microprocessor 1 memory slots (6)
1 SATA connector 1 (ports 4-7)
Used to connect to the SATA 4–7 connector on the ThinkServer RAID 110i pass-through board.
2 AnyRAID connector 0-1
Used to connect to the PCIe connectors on the AnyRAID adapter.
3 SATA connector 0 (ports 0-3)
Used to connect to the SATA 0–3 connector on the ThinkServer RAID 110i pass-through board.
