To install the TPM, do the following:
1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all
power cords from electrical outlets and disconnect all cables that are connected to the server.
2. Prepare your server. See “Removing or extending the server from the rack cabinet” on page 69.
3. Remove the server cover. See “Removing the server cover” on page 69.
4. Remove the riser card assembly 2. See “Replacing the riser card” on page 85.
5. Touch the static-protective package that contains the TPM to any unpainted surface on the outside of
the server. Then, take the TPM out of the package.
Note: Carefully handle the TPM by its edges.
6. Locate the TPM connector on the system board and then insert the TPM into the TPM connector
on the system board.

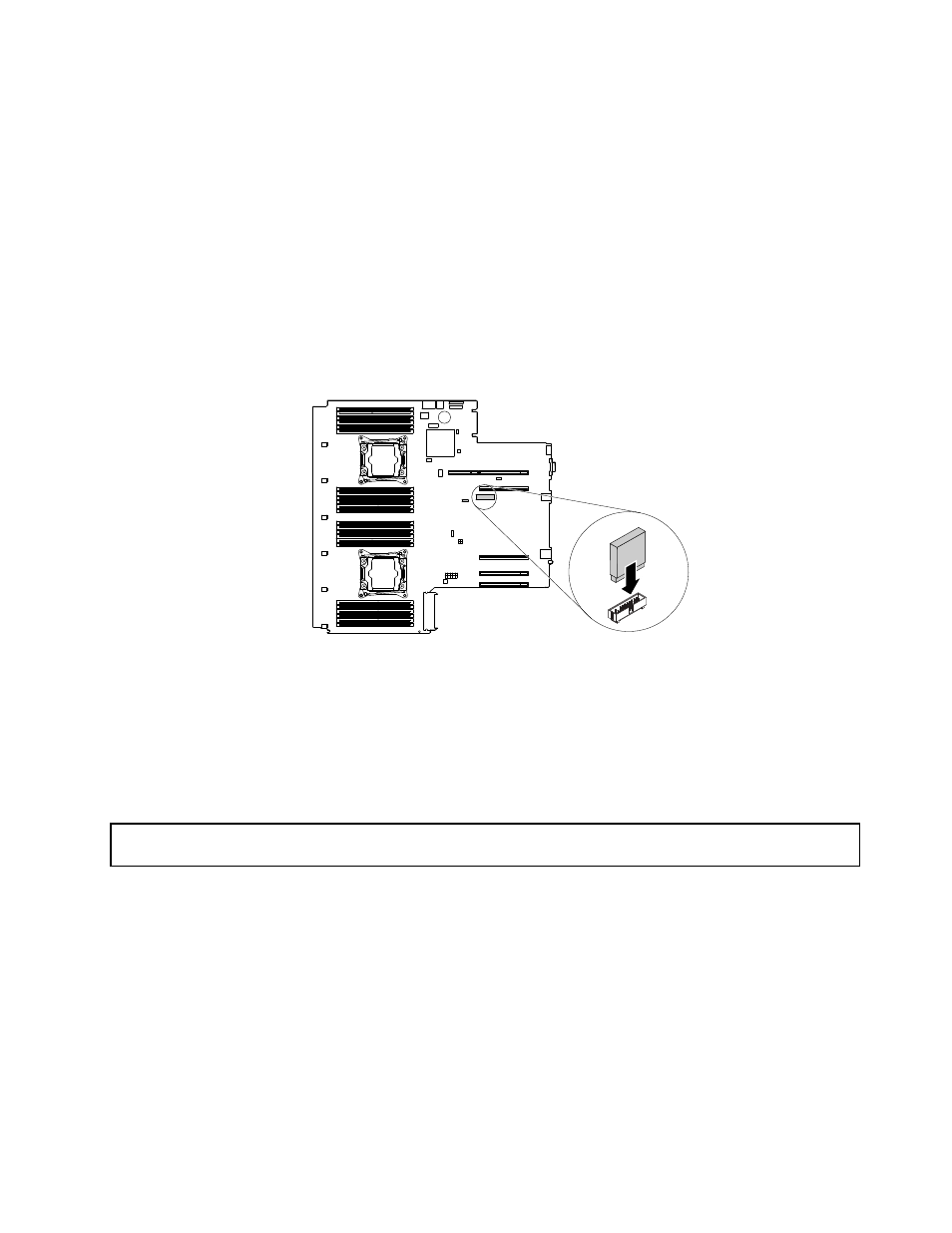

Figure 88. Installing the TPM
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation, go to “Completing the parts replacement” on page 183. Then, you can
configure the TPM function in the Setup Utility program. See “Configuring the TPM function” on page 60.
Removing the TPM
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 67.
Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
Notes:
• If you remove the TPM, the TPM function will be unavailable.
• Use any documentation that comes with the TPM and follow those instructions in addition to the
instructions in this topic.
To remove the TPM, do the following:
1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all
power cords from electrical outlets and disconnect all cables that are connected to the server.
.
