RAID card:
• Lenovo ThinkServer 9286 RAID Adapter
The Lenovo ThinkServer 9286 RAID Adapter is used to connect external storage devices.
Pass-through board:
• Lenovo ThinkServer RAID 110i pass-through board
The Lenovo ThinkServer RAID 110i pass-through board is used to provide SATA software RAID function.
Note: Depending on the configuration, the AnyRAID adapter, RAID card, or pass-through board installed in
your server might look slightly different from the illustrations in this topic.
Lenovo ThinkServer RAID 510i AnyRAID Adapter

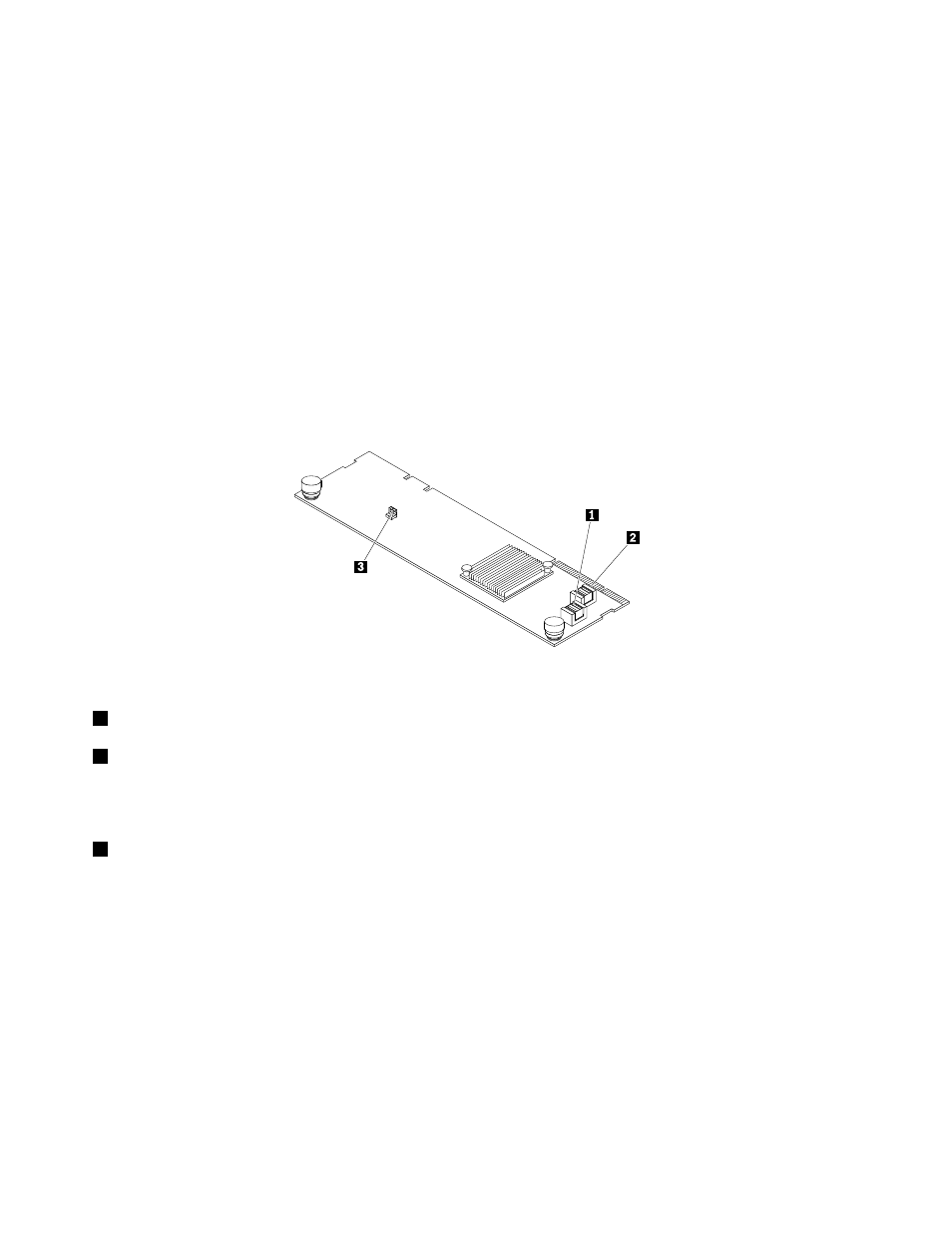

The following illustration shows the connectors on the Lenovo ThinkServer RAID 510i AnyRAID Adapter.
Figure 15. Lenovo ThinkServer RAID 510i AnyRAID Adapter
1 PCIE 0 connector
2 PCIE 1 connector
Used to connect to the AnyRAID connector 0–1 on the system board. See “System board components”
on page 43.
3 RAID upgrade key connector
Used to connect a ThinkServer RAID 510i upgrade key.
32 ThinkServer RD650 User Guide and Hardware Maintenance Manual
