8. Touch only the edges of the microprocessor and carefully lift it straight up and out of the microprocessor

socket. Place the old microprocessor on a static-protective surface.

Notes:

• Do not touch the gold contacts on the bottom of the microprocessor.

• Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be

kept as clean as possible.

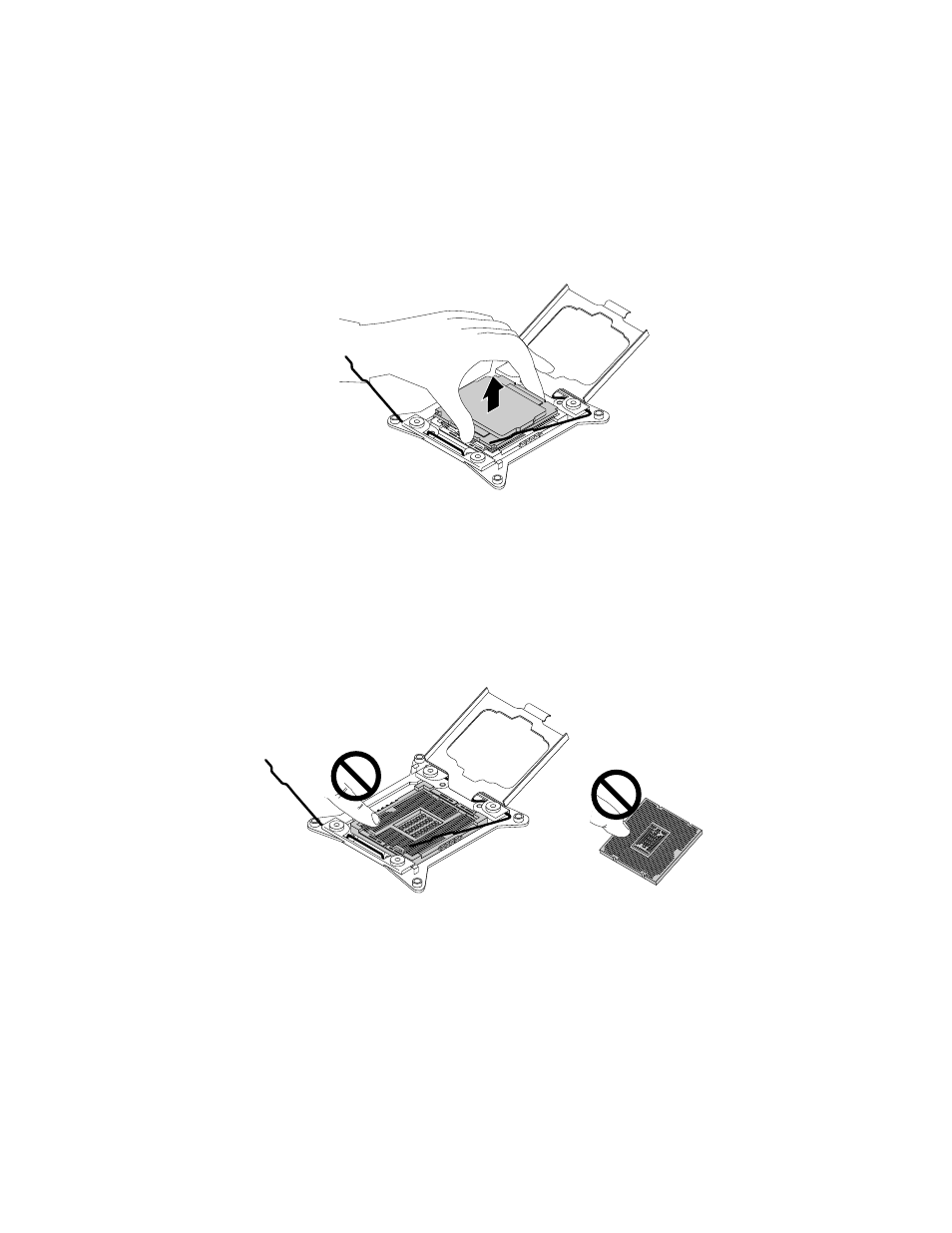

Figure 106. Removing the microprocessor

9. Touch the static-protective package that contains the new microprocessor to any unpainted surface on

the outside of the server. Then, remove the new microprocessor from the package.

10. Remove the new microprocessor from the protective cover that protects the gold contacts on the

bottom of the new microprocessor. Do not touch the pins on the microprocessor socket and the gold
contacts on the bottom of the new microprocessor.

Figure 107. Do not touch the pins
