13. Remove the screw that secures the power distribution board to the chassis. Then, lift the power
distribution board out of the chassis.

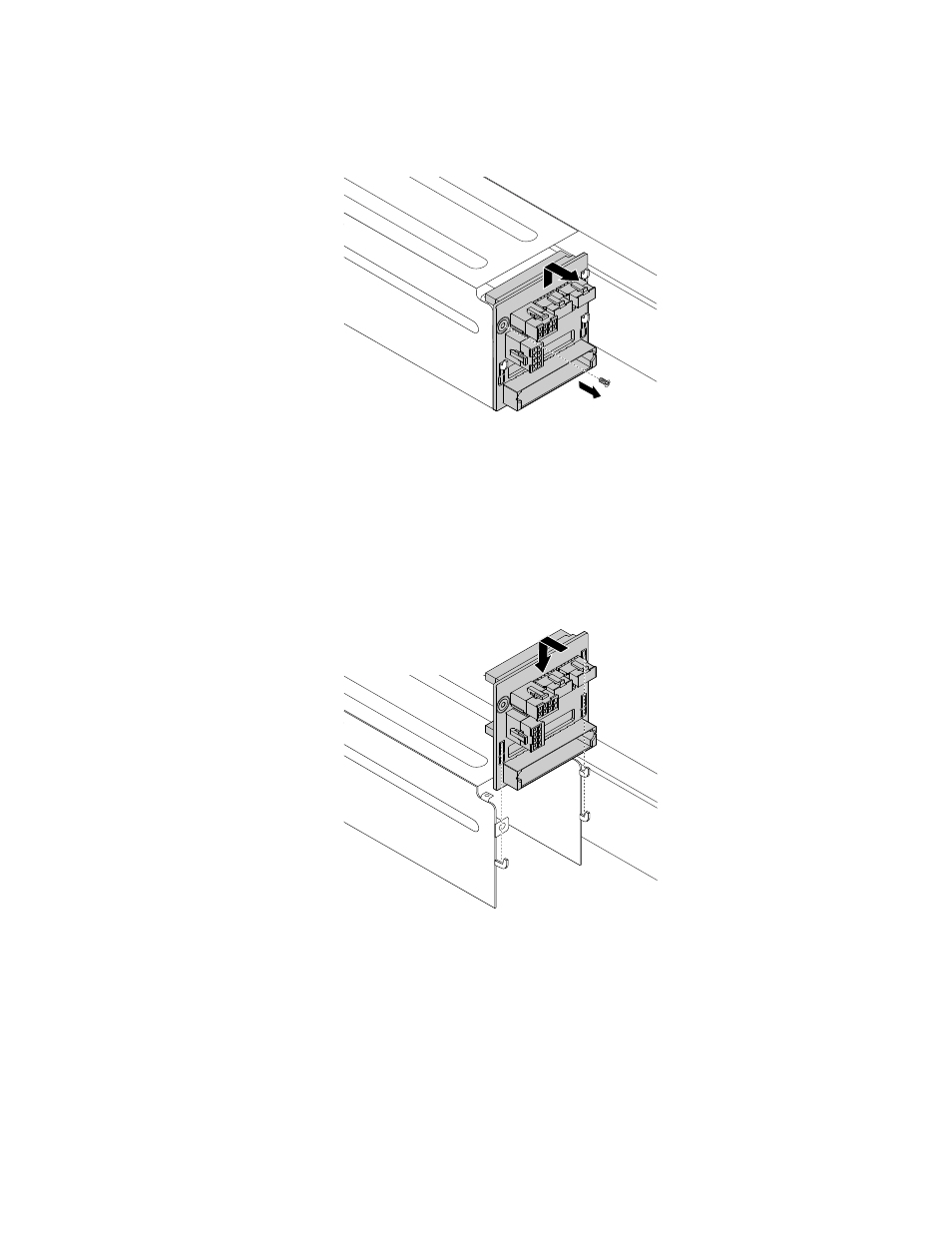

Figure 178. Removing the power distribution board
14. Touch the static-protective package that contains the new power distribution board to any unpainted
surface on the outside of the server. Then, remove the new power distribution board from the package.
15. Align the power distribution board with the chassis so that the small hooks on the chassis pass through
the corresponding holes in the power distribution board. Ensure that the screw hole in the power
distribution board is aligned with the corresponding hole in the chassis.
Figure 179. Installing the power distribution board
Chapter 6 . Replacing hardware 181
