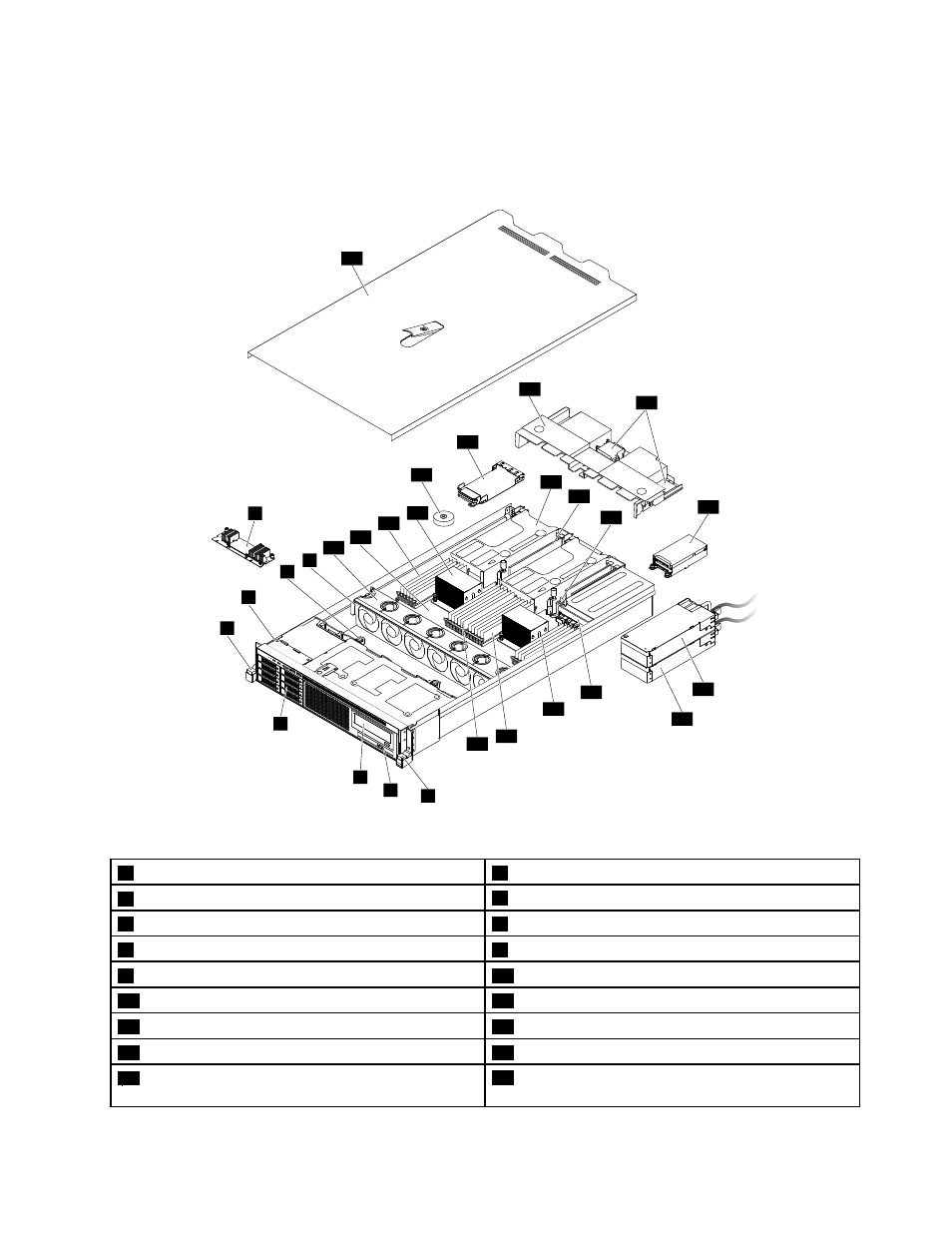

The following illustration shows the components of server models with an internal tape drive and a slim
optical drive.
Note: Depending on the model, your server might look slightly different from the illustration in this topic.
5
6
8
1
2
3
4
7
9
10
12
27
26
25
24
13
14
18
19
20
15
16
17
28
11
22
23
21
Figure 14. Components of server models with an internal tape drive and a slim optical drive
1 Rack handle (right) 2 Slim optical drive (available on some models)
3 Internal tape drive (available on some models) 4 2.5-inch-drive area
5 Rack handle (left) 6 Front panel board
7 AnyRAID adapter 8 Front backplane
9 System fan cage 10 System fan
11 System board 12 CPU1 DIMMs (vary by model)
13 Heat sink 14 Coin-cell battery
15 AnyFabric adapter (available on some models) 16 Cooling shroud
17 ThinkServer RAID Super Capacitor Module (available
on some models)
18 Riser card assembly
Chapter 3 . Product overview 29
