Manual operation and setup
15.2 Moving the machine axes
15
492
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 5/2013

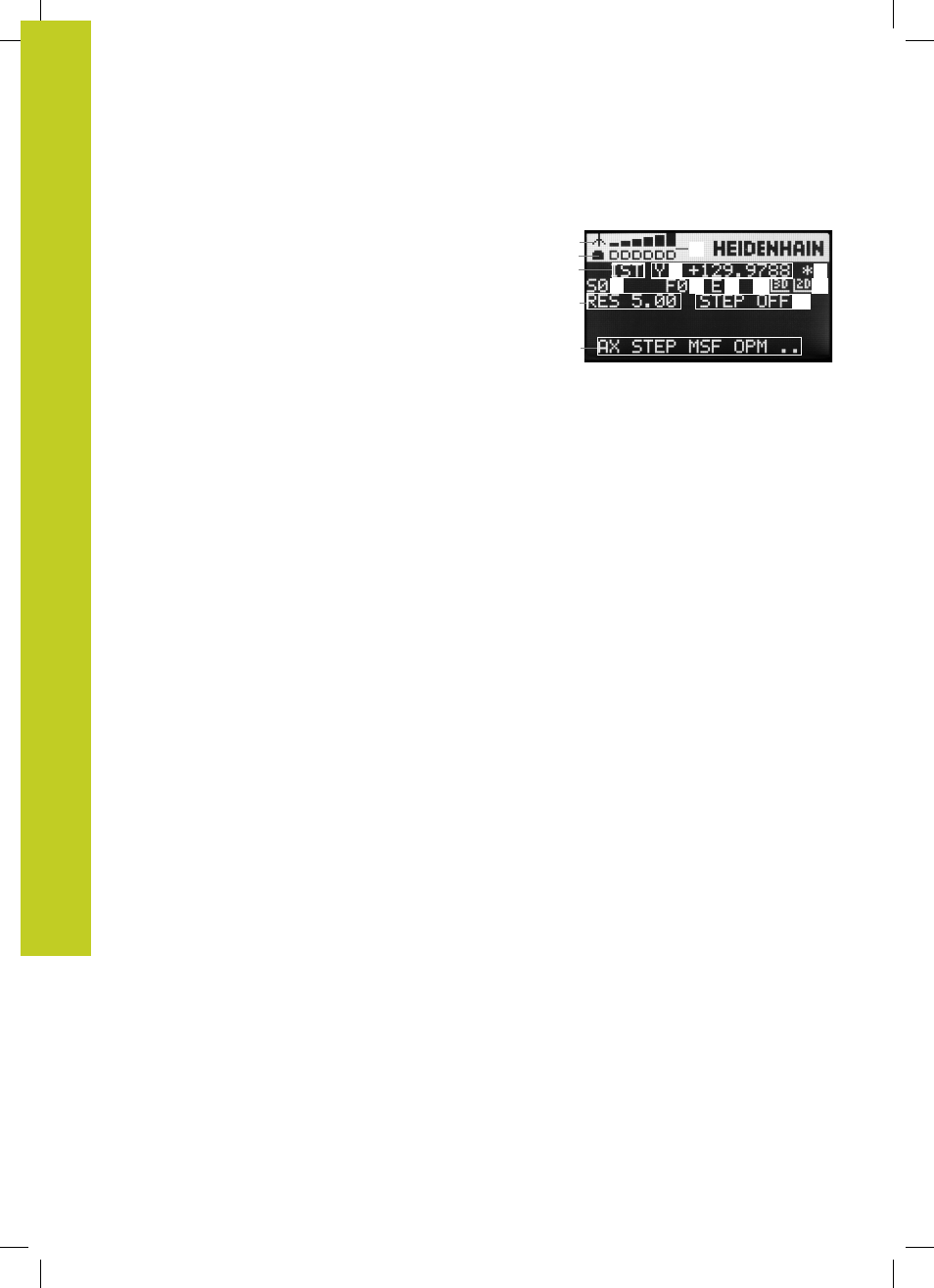

Handwheel display
1 Only with wireless handwheel HR 550 FS : Shows whether
the handwheel is in the docking station or whether wireless
operation is active
2 Only with wireless handwheel HR 550 FS: Shows the field
strength, 6 bars = maximum field strength
3 Only with wireless handwheel HR 550 FS: Shows the charge
status of the rechargeable battery, 6 bars = fully charged A bar
moves from the left to the right during recharging
4
ACTL: Type of position display
5
Y+129.9788: Position of the selected axis
6
*: STIB (control in operation); program run has been started or
axis is in motion
7 S0:: Current spindle speed
8 F0: Feed rate at which the selected axis is moving
9 E: Error message
10
3D: Tilted-working-plane function is active
11
2D: Basic rotation function is active
12
RES 5.0: Active handwheel resolution. Distance in mm/rev
(°/rev for rotary axes) that the selected axis moves for one
handwheel revolution
13 STEP ON or OFF: Incremental jog active or inactive. If the
function is active, the TNC also displays the active jog
increment
14 Soft-key row: Selection of various functions, described in the
following sections
14
4
12
5
8 7 7 10
3
2
1
11
13
7 9
7 6
