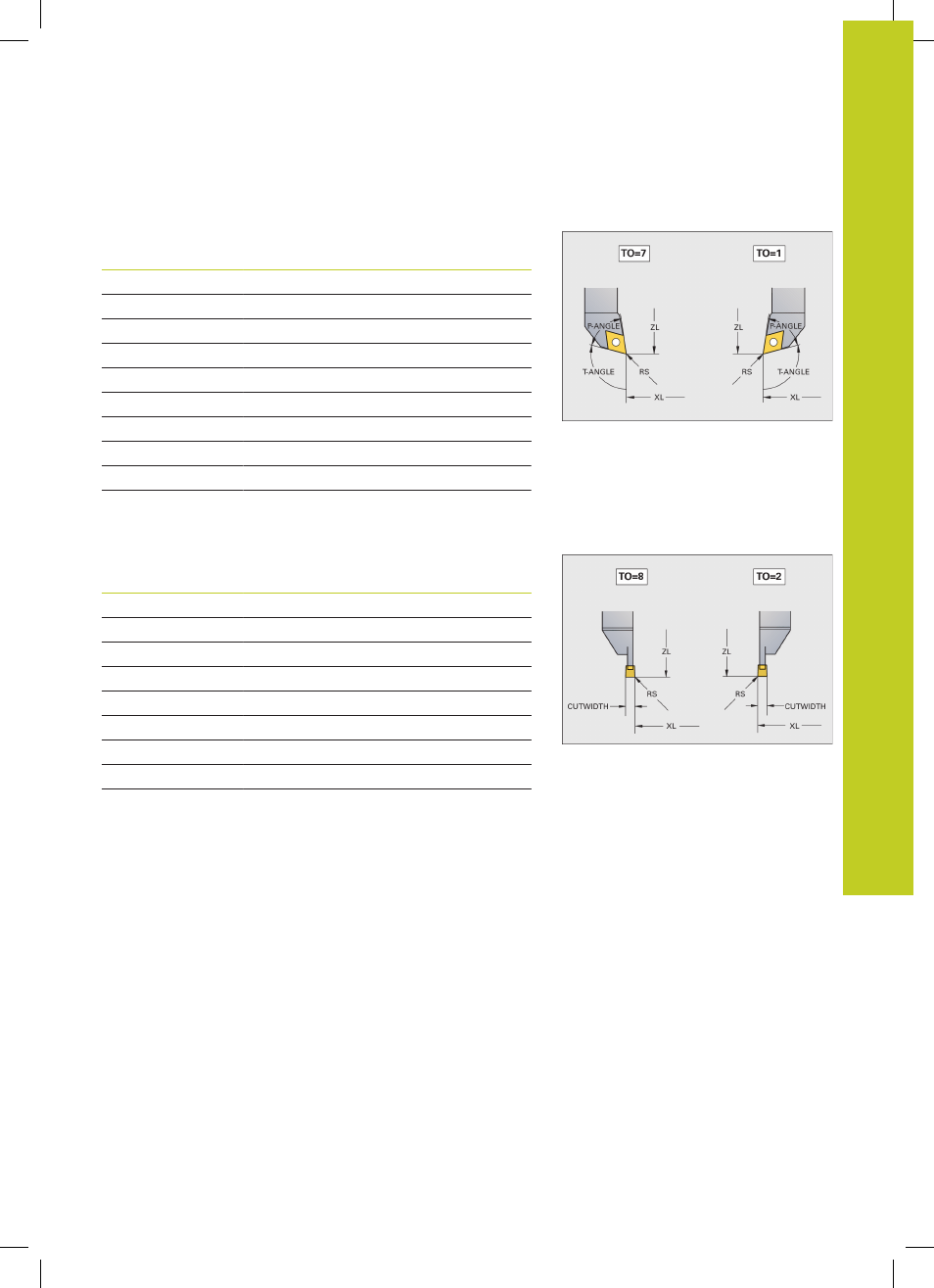

Tool data for turning tool
Required and optional tool data for turning tool
Input element Application Input
ZL Tool length 1 Required
XL Tool length 2 Required
DZL Wear compensation ZL Optional
DXL
Wear compensation
XL
Optional
RS
Cutting radius Required
TO
Tool orientation Required
ORI
Orientation angle Required
T-ANGLE
Tool angle Required
P-ANGLE
Point angle Required
TYPE Tool type Required
Tool data for recessing tools
Required and optional tool data for recessing tools
Input element Application Input
ZL Tool length 1 Required
XL Tool length 2 Required
DZL
Wear compensation
ZL Optional
DXL Wear compensation XL Optional
RS Cutting radius Required
TO Tool orientation Required
ORI
Orientation angle Required
CUTWIDTH
Width of recessing tool Required
TYPE
Tool type Required
