Programming: Turning Operations
14.2 Basis Functions (Software Option 50)
14
470
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 5/2013

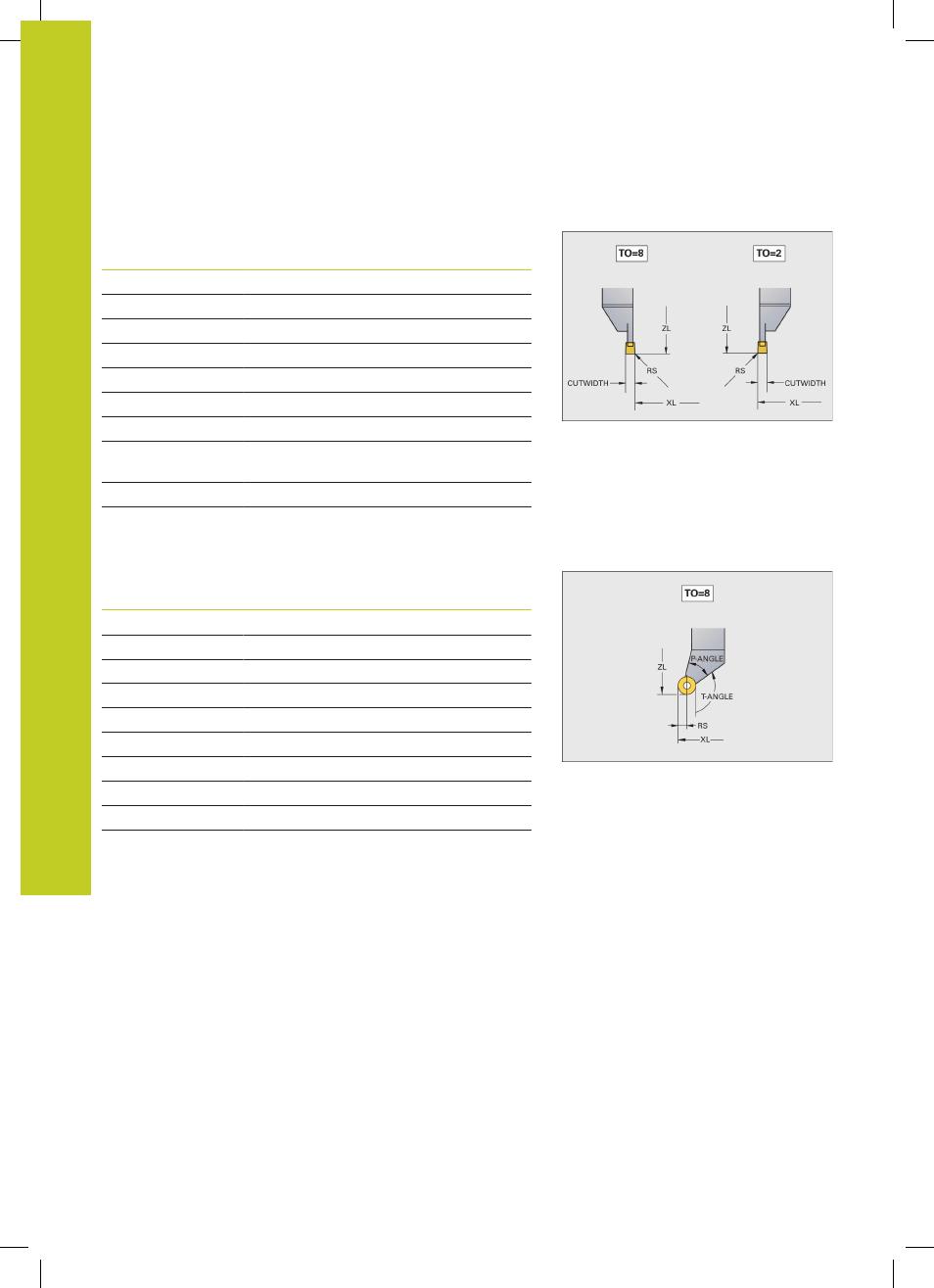

Tool data for groove turning tools
Required and optional tool data for groove turning tools
Input element Application Input
ZL Tool length 1 Required
XL Tool length 2 Required
DZL Wear compensation ZL Optional
DXL
Wear compensation
XL
Optional
RS
Cutting radius Required
TO
Tool orientation Required
ORI
Orientation angle Required
CUTLENGTH
Cutting length of
recessing tool Required
CUTWIDTH
Width of recessing tool Required
TYPE
Tool type Required
Tool data for button tools
Required and optional tool data for button tools
Input element Application Input
ZL
Tool length 1 Required
XL
Tool length 2 Required
DZL
Wear compensation
ZL Optional
DXL
Wear compensation
XL Optional
RS Cutting radius Required
TO Tool orientation Required
ORI Orientation angle Required
T-ANGLE Tool angle Required
P-ANGLE
Point angle Required
TYPE
Tool type Required
