2 Select just level A12. Press source 3.
3 Select just levels A34 and A56. Press source 4.
If these levels are selected, you can double-press any of the level buttons to make visible the
source that contributes that level.
You can continue to break sources away, ad infinitum.
To clear the breakaway, select all levels and then press a source.
Example — Breakaway for CP3201 or CP6401 in Enhanced Mode with Hold
You want to take SD from source 1 to the default destination. But you also want to take AES12
from source 3 and both AES34 and AES56 from source 4. The previous source was source 7.
The levels defined for the destination are SD, A12, A34, and A56. SD was defined first in the
destination description. Therefore it is considered the primary level.
This example shows a CP3201:

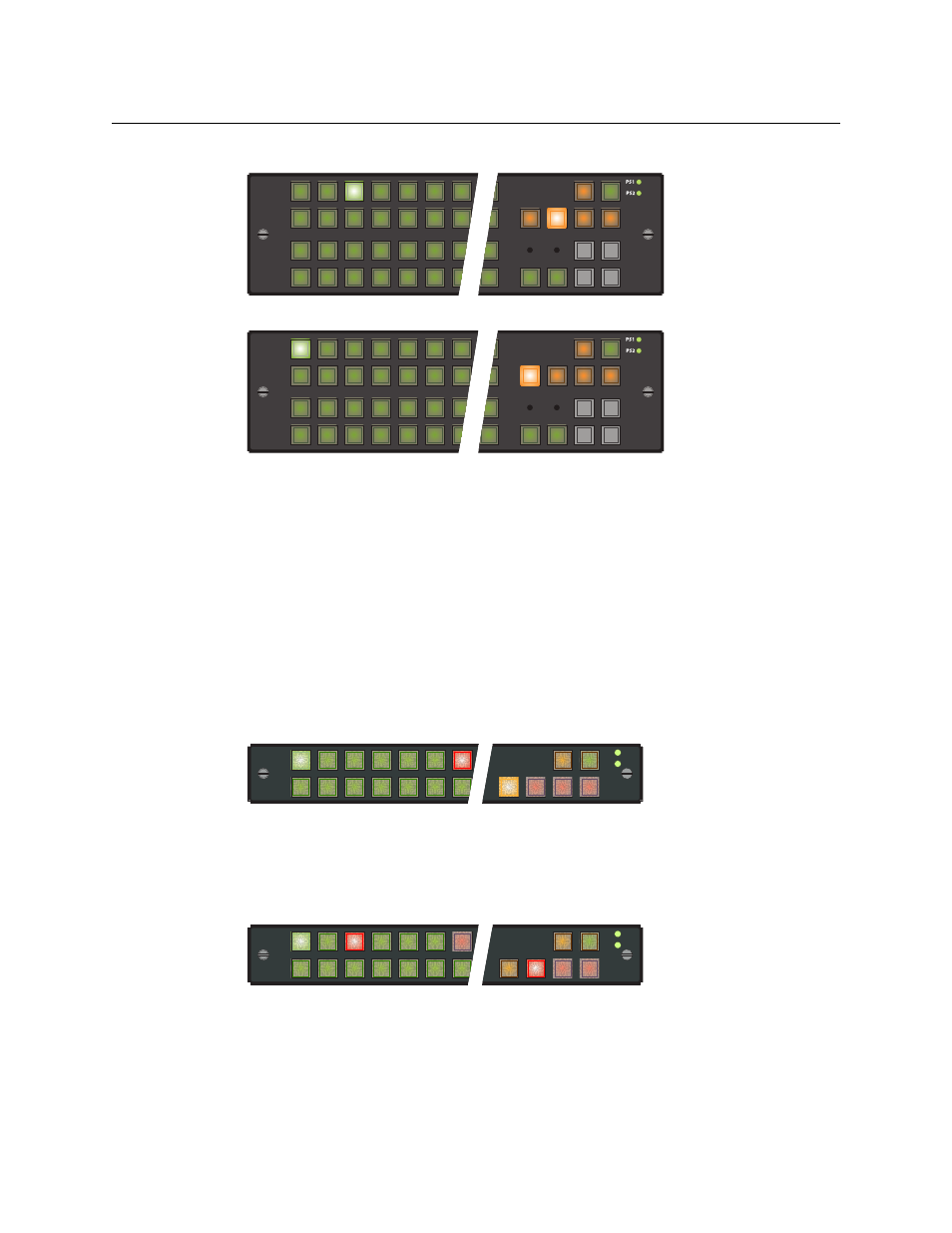

1 Select just level SD. Press source 1.
Source 1 goes high tally because you have taken SD — the primary level — from this source.
Source 7 is red indicates that the other levels still come from source 7. (The SD level button is
amber because SD is the primary level. The other level buttons are red because they are not
primary. They are low-tally because this is hold mode and SD remains the selection.)
2 Select just A12. Press source 3.
Source 3 goes high-tally red because it is not the primary source. The level buttons remain
unchanged. You could choose another source at this point.
