148
Operation
Performing Takes
•
CQX router “clean and quiet” ‘takes’ employ transition type and rate (for outputs 1 and 2).
See
on page 155. CQX routers also perform normal ‘takes’ similar to other routers
on its auxiliary outputs (3 through 8).
Normal Takes
By “normal take” we mean a non-breakaway take.
First press a destination button and then a source button. The take occurs immediately. The
previous route (for the destination) is lost.
Please note:
•
Takes on CP3201s and CP6401s are different. See
•
If a destination is locked, the destination button is usually red, high-tally when selected. You
cannot perform a take for a destination that is locked. See
•
The meaning of a take for a machine control router is different from ‘takes’ on other routers.
See

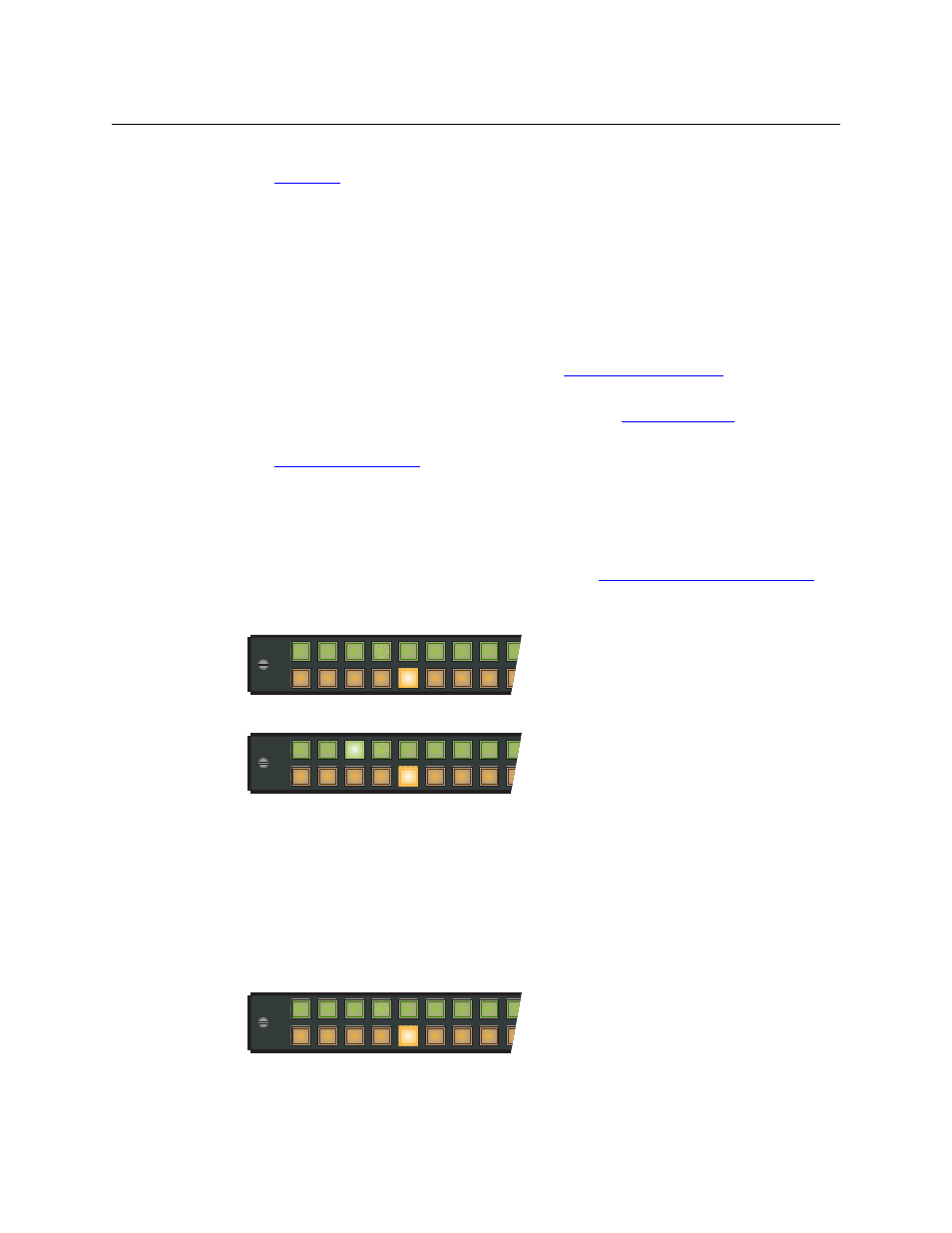

Example
—
Normal Take in Standard Mode
You want to route source S to destination D.
1 Optionally, select the levels on which you want the take to occur. Potentially, this changes
the sources and destinations enabled for the take. See
Level Selection in Standard Mode
page 158. (Selecting levels prior to the destination does not result in breakaway.)
2 Press destination D.
3 Press source S.
Pressing another destination button (always) starts a new take.
In standard mode, a normal take occurs on all selected levels.
Example
—
Normal Take in Enhanced Mode
You want to route source S to destination D.
1 Do
not press any level buttons. Doing so initiates a breakaway for the previously chosen des-
tination.
2 Press destination D.
Source
Dest
1
2
3
4
5
6
7
8
9
D
S
Source
Dest
1
2
3
4
5
6
7
8
9
D
S
Source
Dest
1
2
3
4
5
6
7
8
9
D
S
