CiM-300L IP Enabled Satellite Modem Rev. 1
Installation CD/CIM300L.IOM
14
2.3 E
XTERNAL
M
ODEM
C
ONNECTIONS

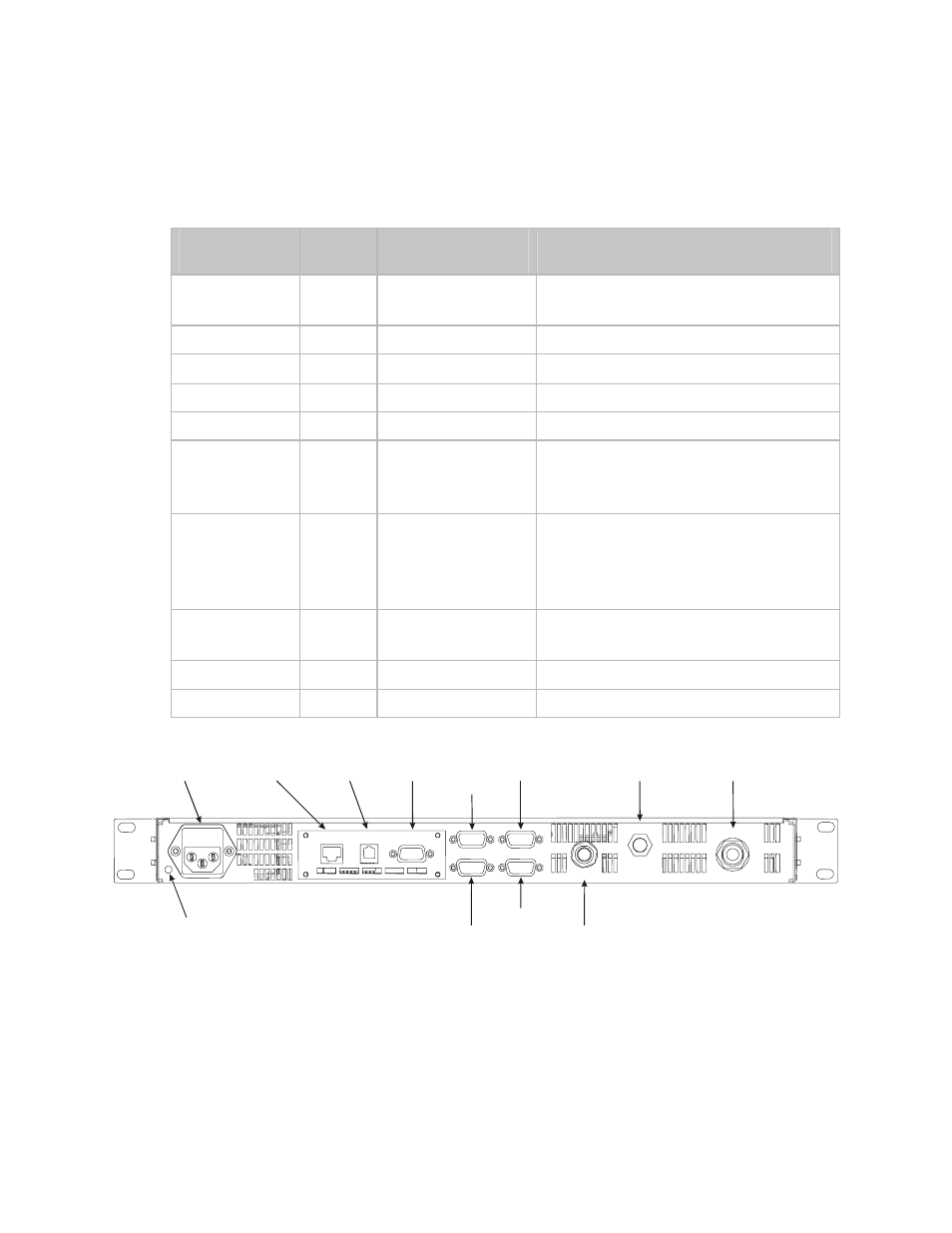

Table 2-2. Modem Rear Panel Connectors
Name Ref.
Des.
Connector Type
Function
TX/IF OUTPUT CP1 BNC (70/140 MHz)
Type N (L-Band) RF Output
EXT REF CP2 BNC EXT REF IN
RF IF INPUT CP3 Type N 75 Ω RF Input
J6 Not used
FAULT J7 9-pin D FORM C Fault Relay Contacts
ETHERNET
INTERFACE RS45-8
RS11-6
DB9-M
10/100 BaseT Ethernet
Async Serial Console
Remote interface
AUX J9 9-pin D (TTL) Faults
Satellite Clock
Demod I/Q
Automatic Gain Control (AGC) Out
ALARMS J10 9-pin D FORM C Alarm
Relay Contacts
AC INPUT NONE IEC
GROUND NONE 10-32 Stud
REMOTE ETHERNET
10/100
CONSOLE
J6 V.35/RS422
J7 FAULT ALARM J10
AUX J9
CP1
TX/IF OUT
RX/IF IN
CP3
CP2
EXT REF
RX/IF IN
CP3 AC INPUT REMOTE J9 AUX
J6
J7 FAULT
J10 ALARM
EXT REF
CP2
TX/IF OUT
CP1
10/100
ETHERNET
GROUND STUD
CONSOLE
Figure 2-2. R EAR P ANEL C ONNECTORS
