CiM-300L IP Enabled Satellite Modem Rev. 1
CLI & Telnet CD/CIM300L.IOM
141
9.1.1.1 F
AST
E
THERNET
I
NTERFACE
(
FEI
0) P
AGE

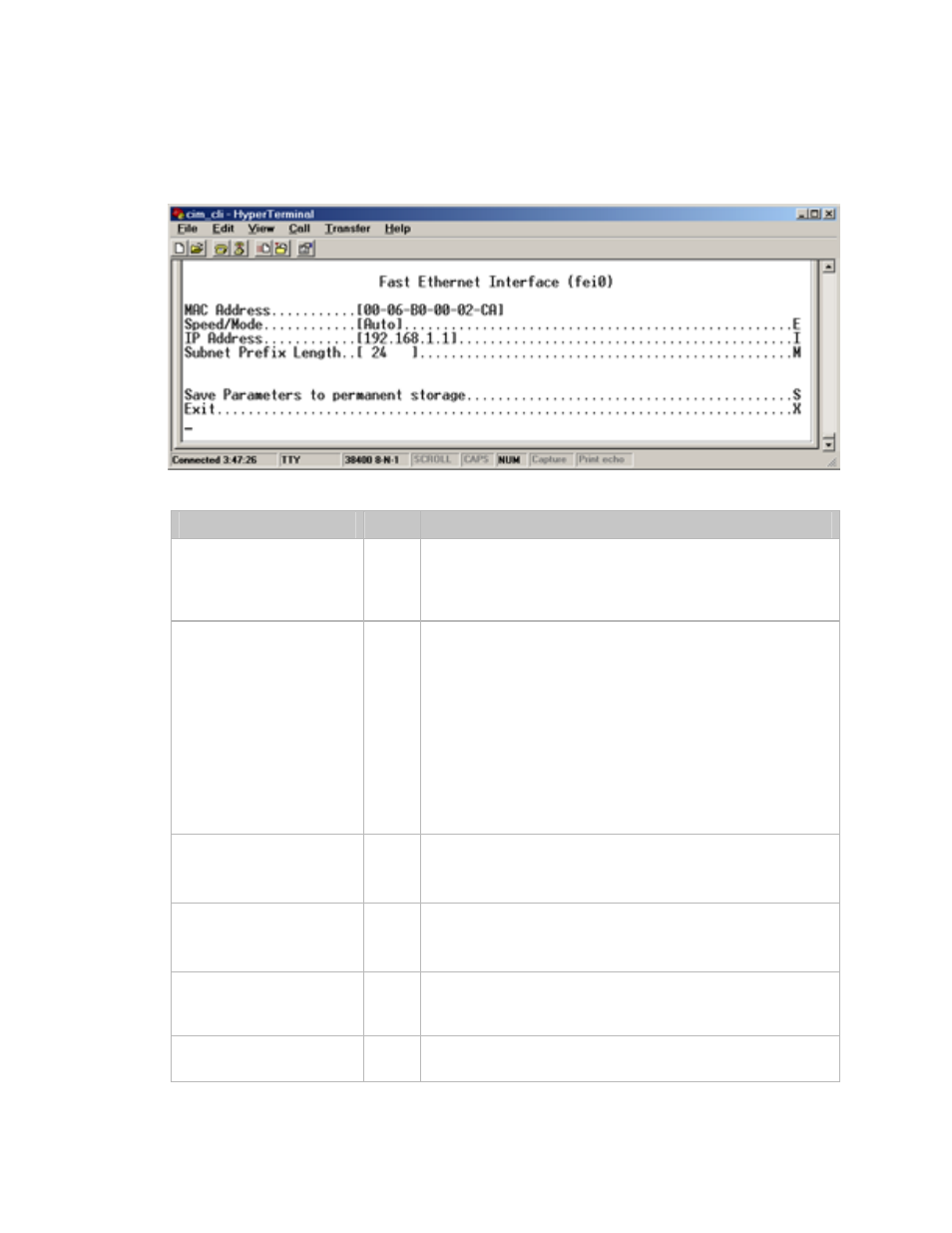

The Fast Ethernet Interface page is activated from the Interface Configuration page.
The Fast Ethernet Interface page contains the following options/fields:
Menu Options/Fields Entry Description
MAC Address Read
Only
The MAC Address defines the hardware destination MAC
Address that is used when an Ethernet packet is destined
for the CiM Ethernet Interface. This address is unique and
has been assigned permanently at the factory.
Speed/Mode E The Ethernet Speed Mode is a configurable parameter of
the CiM and thus its exact setting can very between
specific installations. The default setting allows the
Ethernet port to auto negotiate its link speed on power-up.
Selections are:
1 -- Auto
2 -- 10 MB/sec Half Duplex
3 -- 100 MB/sec Half Duplex
4 -- 10 MB/sec Full Duplex
5 -- 100 MB/sec Full Duplex
IP Address I This is the IP Address assigned the CiM Ethernet
Interface.
Enter the ip address in aaa.bbb.ccc.ddd format
Subnet Prefix Length M Specifies the Subnet Mask assigned to the Ethernet
Interface of the CiM.
Enter the subnet mask prefix length (8..30)
Save Parameters S This option allows a user to save the current configuration
of the CiM to permanent storage. This configuration will be
restored on each successive power cycle of the CiM.
Exit X This option allows a user to exit the current menu and
return to its parent menu.
