4. TR500 Terminal Overview

Technical Reference Manual-4.0.0en

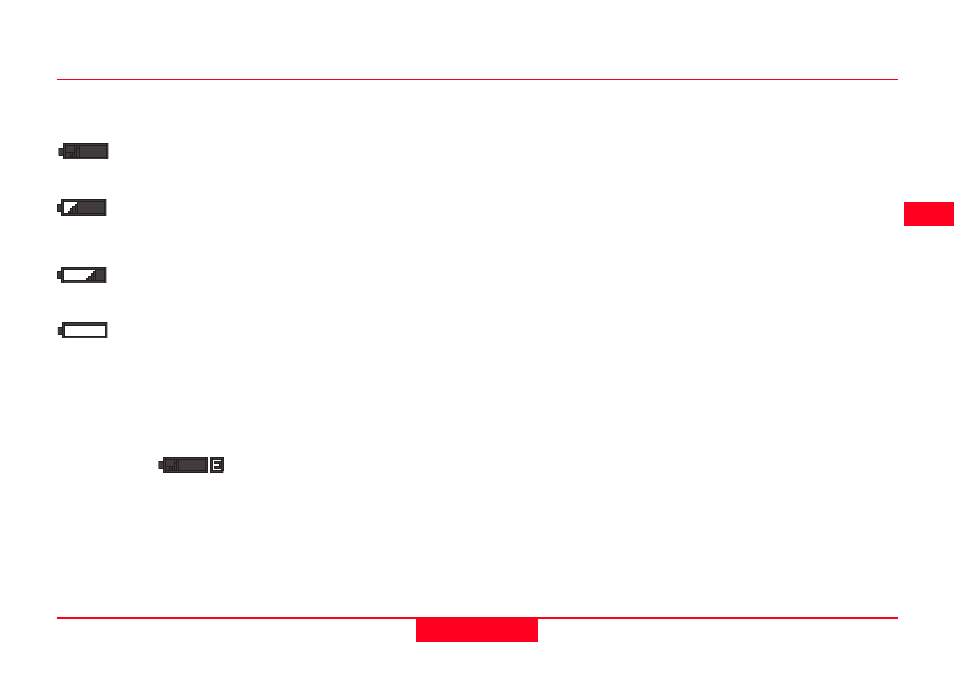

Battery Status

Battery Voltage OK

Battery supplying 2/3 peak
voltage

Battery supplying 1/3 peak
voltage

Battery empty

The battery being used is denoted by
the letter next to it. A and B are the
plug-in camcorder batteries, E is the
external battery.

This example shows that an external
battery is fully charged and is being
used to power the system.

The system will always use the
battery with the highest voltage level.

Due to the discharge characteristics
of the batteries, the lengths of time
between the four voltage level icons
may not be consistent. The voltage
level will decrease more quickly the
lower it gets.
