Traverse

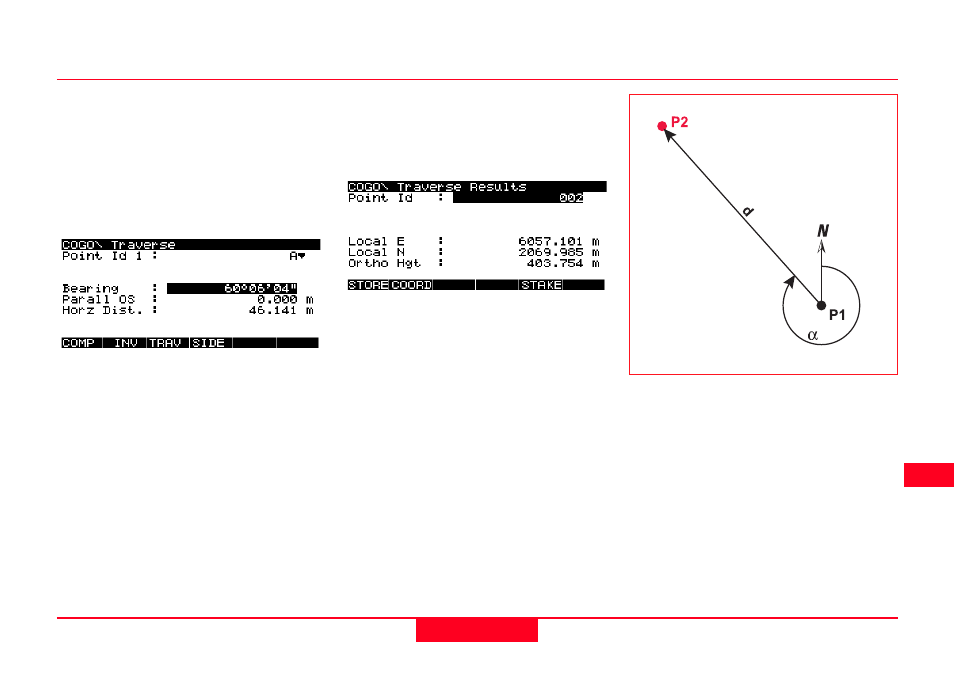

This function enables you to calculate
one or more new points by defining a
start point and entering its distance
and azimuth from the start point.
Enter the start point of the line or
press NEWOC (F5) to measure a
new point. Enter the Bearing
(Azimuth), the optional Parallel Offset
and the Horizontal Distance. Instead
of entering these values manually you
may calculate them from two existing
points by pressing INV (F2).
Single point computation:
Press COMP (F1) to start the compu-
tation.
Easting, Northing and Height of the
new point are displayed.
Enter a Point Id, change the Height if
neccessary. Press STORE (F1) will
bring you back to the COGO\ Menu.
Alternatively press STAKE (F5) to
switch to the stakeout screen and use
the coordinates directly for stakeout.
Input:
P1 - Start point of line (E, N, h)
α αα αα
- Bearing (Azimuth)
d - Horizontal Distance
Output:
P2 - End point of line (E, N, h)
