4. TR500 Terminal Overview Technical Reference Manual-4.0.0en
When activated for the first time, the
Terminal runs through several boot up
screens and then the Main Menu
appears.
The basic layout consists of a row of
status icons over a main display area
with a row of six softkeys (F1-F6) at
the bottom.
The Status Icons provide information
related to basic Receiver functions.
The Directory Bar gives your location
within the menu structure.
The Main Display Area shows infor-
mation regarding the receiver and/or
ongoing survey operation.
The Softkeys (F1-F6) indicate which
command may be executed by
pressing the relevant key.

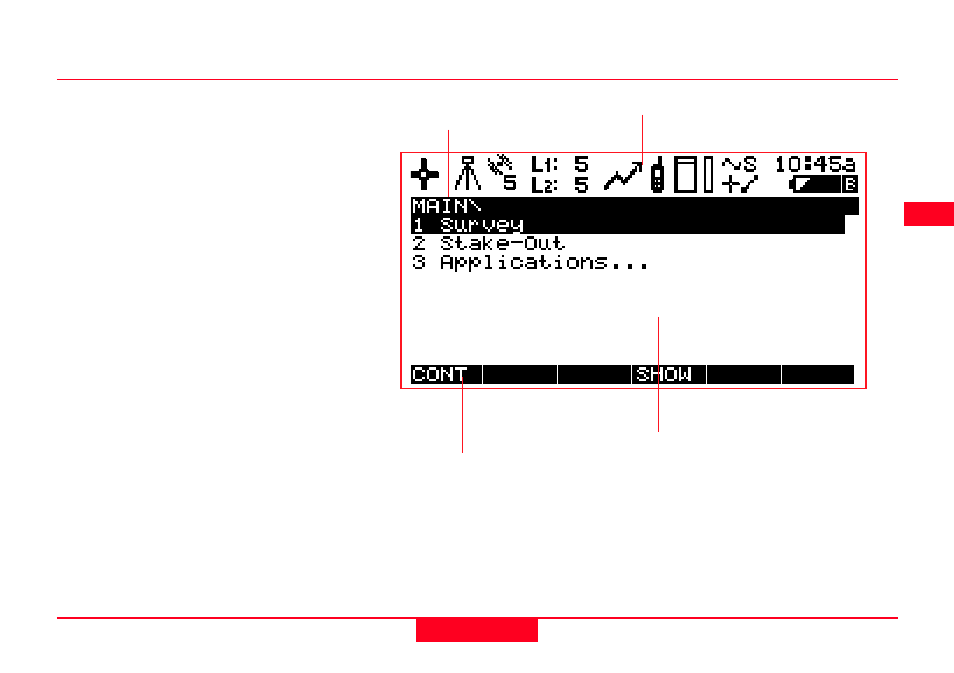

4.1 Screen Layout
Status Icons
Directory Bar
Main Display Area
Softkeys F1-F6
