334

Appendix F

Technical Reference Manual-4.0.0en

Port 1
Pin

Function

1

RTS

2

CTS

3

GND

4

Rx

5

Tx

6

Vmod

7

Bat

1)

8

+12V

2)

Port2/PWR
Pin

Function

1

Bat

1)

2

+12V

2)

3

GND

4

Rx

5

Tx

Port 3
Pin

Function

1

RTS

2

CTS

3

GND

4

Rx

5

Tx

6

Vmod

7

Bat

1)

8

+12V

2)

Terminal
Pin

Function

1

KDU_ON

2

KDU_PWR

3

GND

4

Rx

5

Tx

PWR
Pin

Function

1

Bat

1)

2

+12V

2)

3

GND

4

---

5

---

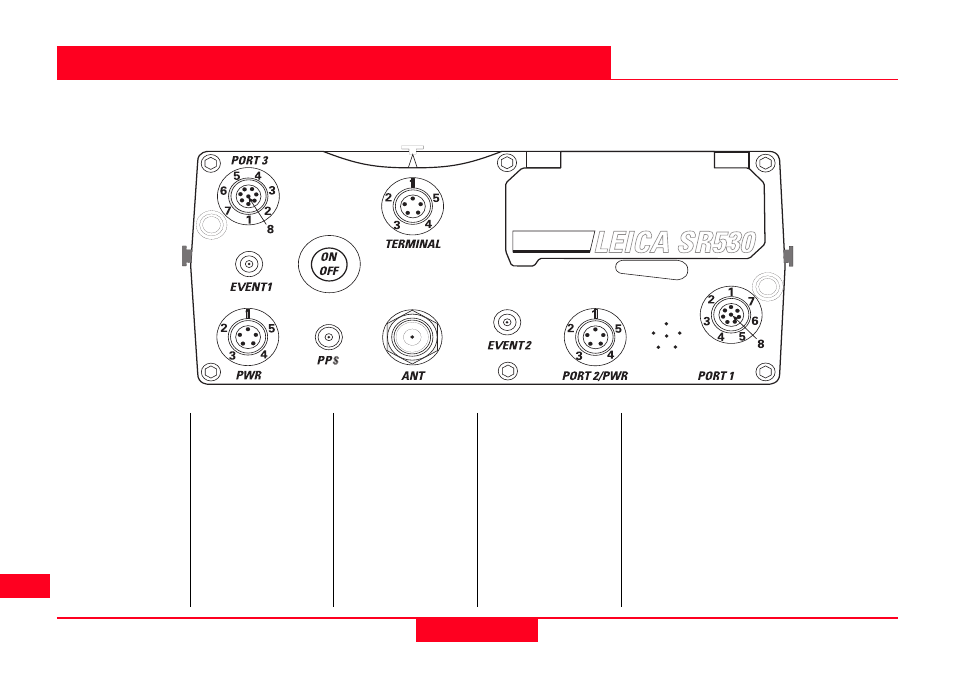

Appendix F - Pin Assignments and Sockets
