66 2. Set-up and Connection Technical Reference Manual-4.0.0en

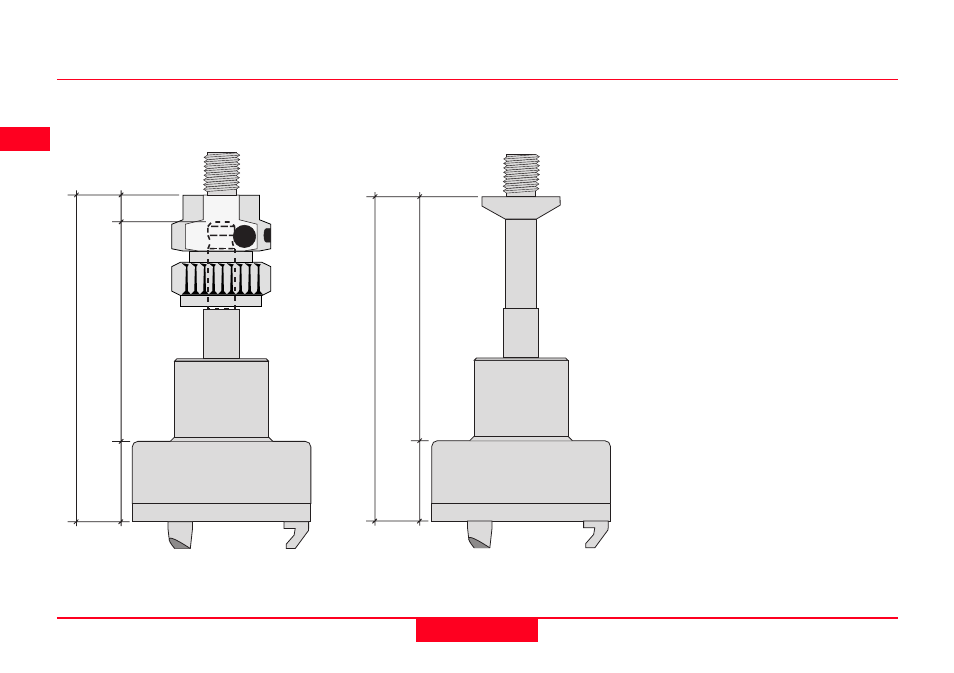

Pillar Setup II - Carrier and Adapter dimensions
36.5
145.5
9.3
99.7
36.5
145.5
109
All dimensions are shown in millime-
ters and may be required when
determining the Vertical Height
Reading on a pillar or other nonstand-
ard setup. They allow you to deter-
mine the height to a surface on the
carrier (which is probably easier than
determining it to the Mechanical
Reference Plane), and then add the
remaining value to the Mechanical
Reference Plane.
GRT44 Carrier with GAD31 Stub to
Screw Adapter
GRT46 Carrier
