348 Appendix H Technical Reference Manual-4.0.0en

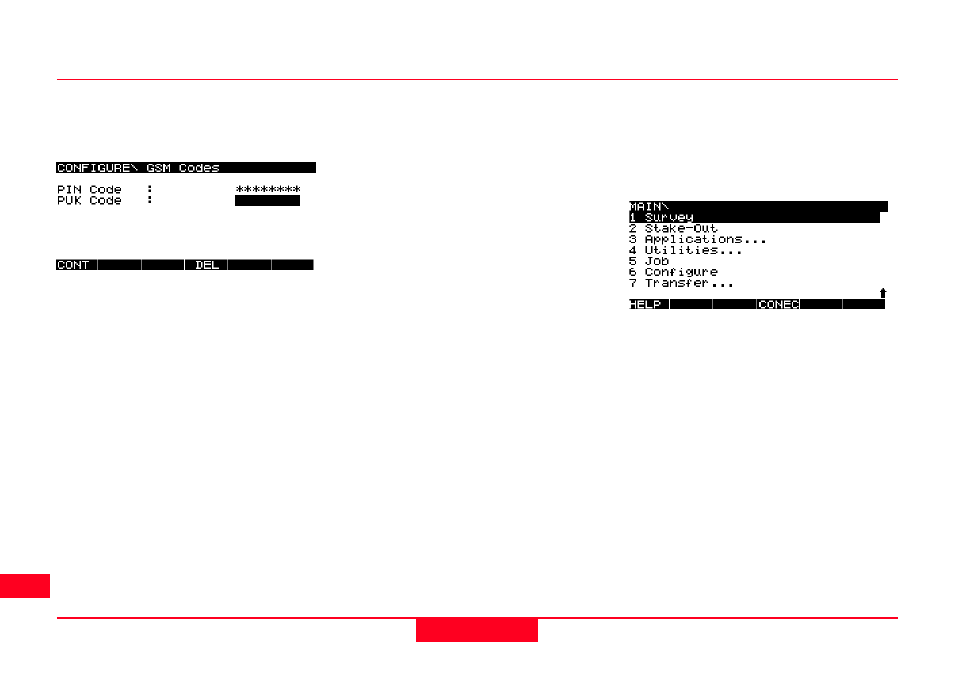

Press the CODES (F3) key to input
your PIN code.
If for some reason the PIN code is
blocked (E.g. the wrong PIN was
entered) input the PUK Code to be
able to access the PIN.
DEL (F4) will delete both the existing
PIN and PUK code.
Press CONT (F1) to return to previ-
ous screen.
Press Shift and then CMD (F4) to
SEND (F3) an AT command to the
GSM.
Note that this functionality can only be
employed in Advanced Mode.
Press CONT (F1) in the CONFIG-
URE\ GSM Connection panel to
return to CONFIGURE\ Interfaces.
When a GSM Phone is configured a
softkey CONEC (F4) or DISCO (F4)
becomes available upon pressing
SHIFT in the MAIN, SURVEY and
STAKEOUT screen.
This enables you to quickly connect
to the selected Station or disconnect
immediately after the survey is
completed in order to save air time.
