Leica Geosystems GPS System 500 - Technical Reference Manual - Manual (Page 291)

291 11. Applications Technical Reference Manual-4.0.0en
Inverse
This function enables you to calculate
the inverse between two grid or two
geodetic points. All coordinates used
in the program can be entered
manually, selected from the database
or measured.

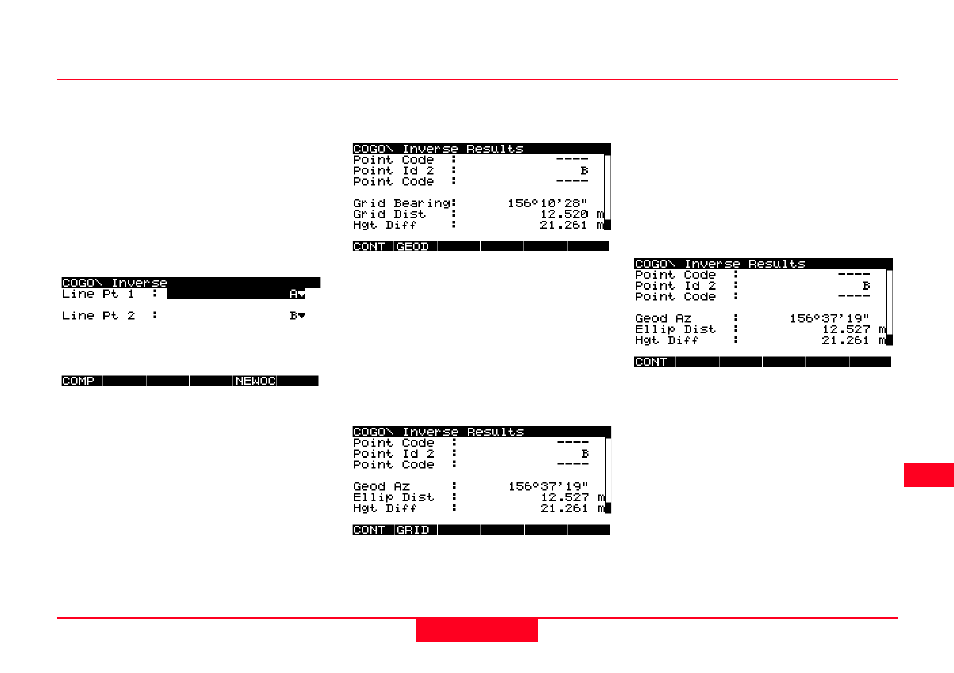

Enter the start point and the end
point of the line or press NEWOC
(F5) to measure new points.
Press COMP (F1) to start the
computation.
Local coordinate system attached:
The Grid Bearing (Azimuth), Grid
Distance and the Height Difference are
displayed.
To display Geodetic Azimuth and
Ellipsoidal Distance press GEOD (F2).
To get back to Grid Bearing and Grid
Distance then press GRID (F2).
Press CONT (F1) to return to the
COGO\ Menu.
No local coordinate system attached:
The Geodetic Azimuth, Ellipsoidal
Distance and the Height Difference
are displayed.
Press CONT (F1) to return to the
COGO\ Menu.
