266 10. Status Technical Reference Manual-4.0.0en

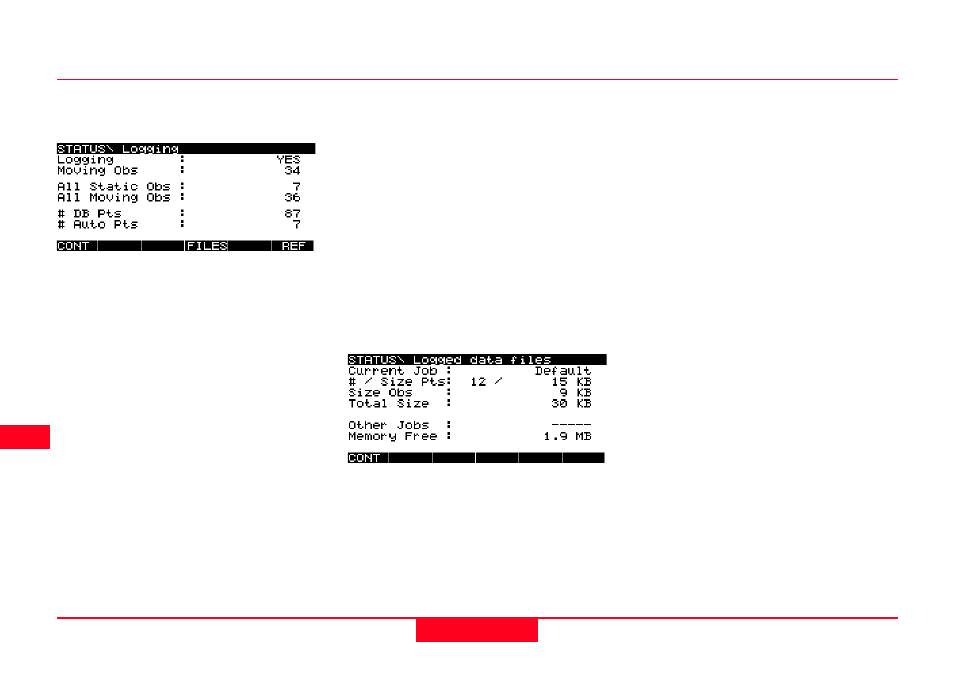

Information about the raw GPS data
logging is given.
Logging - Indicates whether raw
GPS data logging is active or not.
StaticObs/Moving Obs - The num-
ber of Static or Moving observations
(epochs) recorded in this interval.
Static or Moving Obs are displayed
depending on the current measuring
mode.
All Static Obs - The total number of
static observations (epochs) recorded
in the current Job.
All Moving Obs - The total number
of moving observations (epochs)
recorded in the current Job.
# DB Pts - Total number of points
contained in the Job’s database, i.e.
manually recorded points as well as
Auto-Points.
# AUTO Pts - The number of points
that have been recorded automati-
cally in the current track, i.e. the
current START-STOP sequence.
Use the FILES (F4) key to view
information about the logged data
files.
Current Job - The name of the
currently selected Job.
# / Size Pts - The number of and
memory occupied by the points in the
current Job.
Size Obs - The memory occupied by
the raw GPS data in the current Job.
Total Size - The memory occupied by
the current Job.
Other Jobs - The memory occupied
by all other jobs on the current
memory device.
Memory Free - The amount of free
memory on the current memory
device.
The REF (F6) key is available when
the Receiver is configured as a real-
time rover.
Pressing this key gives information
about the logging status on the
Reference station.
10.4 Logging Status
