30 2. Set-up and Connection Technical Reference Manual-4.0.0en
How to set up the equipment
1. Screw the two halves of the pole
together.
2. Slide the grip onto the pole.
Attach the TR500 holder and
tighten the screw.
3. Screw the GPS Antenna to the
top of the pole.
4. Slide the TR500 into the holder
until it clicks into place.
5. Insert the PC Card into the
Receiver and plug in the
GEB121 batteries.
6. Place the Receiver front panel
up in the Minipack with the
batteries facing outwards.
Fasten the strap around the
Receiver
7. Connect the GPS Antenna to the
Receiver using the two Antenna
cables. Connect the longest
cable to the Receiver, pass the
cable through the cable brake
and down through the opening in
the bottom corner of the
Minipack flap. Draw the required
amount of cable out of the
Minipack and tighten the cable
brake. Refer to the diagram.
8. Connect the TR500 to the port
labelled “Terminal” on the
Receiver using the 1.8m cable.
Pass it through the opening in
the bottom of the Minipack flap,
down through a cable brake and
then plug into the Receiver.
Refer to the diagram.
10. Switch on the system using the
ON/OFF button on the Receiver.
To Terminal
To GPS Antenna

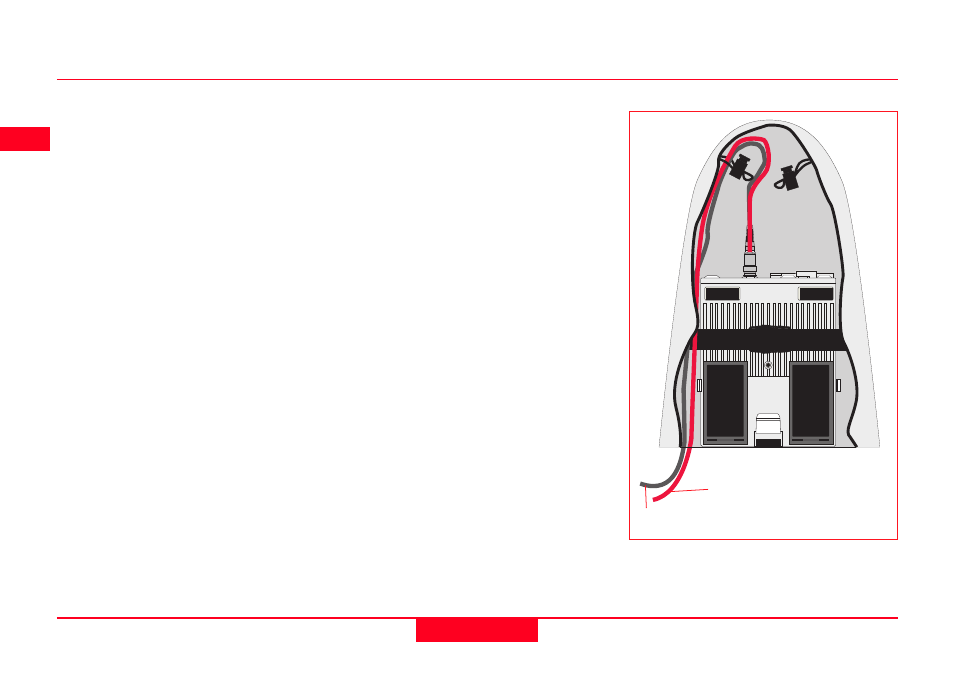

Connecting the TR500 Terminal and GPS
Antenna in the Minipack
