Leica Geosystems GPS System 500 - Technical Reference Manual - Manual (Page 163)

163 7. Measuring with System 500 Technical Reference Manual-4.0.0en
7.1.5 Adding a Starting Time
It will be possible to add a starting
time for a point occupation if auto
occupy has been set to Timed in the
Occupation Settings of the

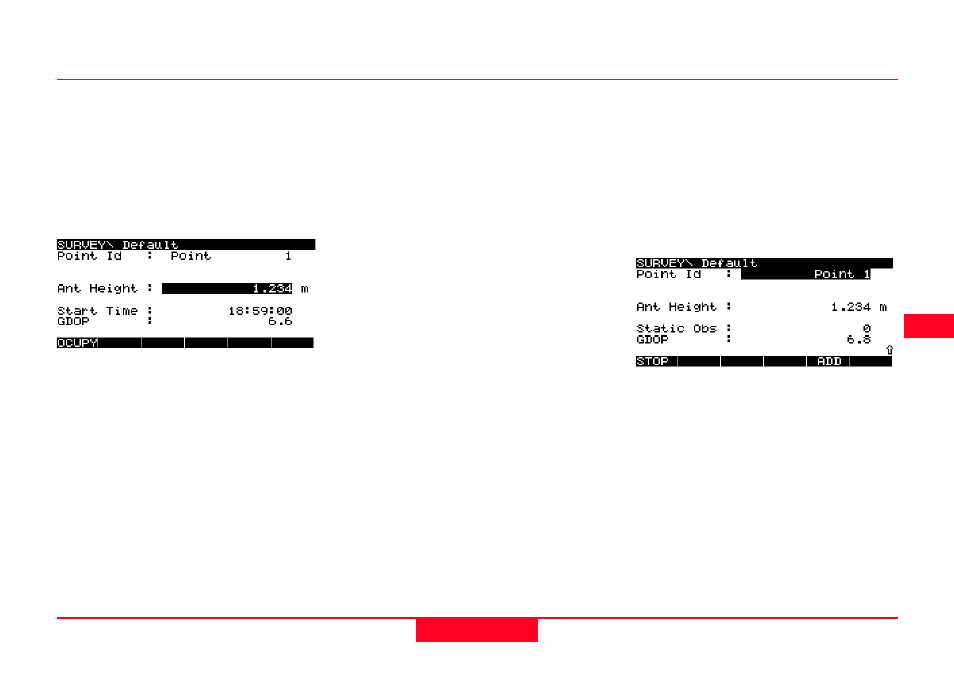

Configuration Set. Initially, the time displayed in Start
Time is the current time with the
seconds rounded to zero.
Enter the time in Start Time in
hours:minutes:seconds.
7.1.6 Measuring procedure
Measuring procedure without
starting time
Press the OCUPY (F1) key to begin
recording observations. The icon
changes to a tripod, indicating that
the Receiver should remain
stationary.
Static Obs/Time - The method by
which you have selected to count
time will be shown. In Advanced
mode, you may select to display the
amount of data required according to
one of four criteria. If this has been
set, a percentage value will be shown
next to the expired Epochs/Time.
