Connecting Peripheral Equipment
Installation Guide | 75
9. Insert the positive and ground wires into the appropriate terminals on the
DAC
A connector and tighten the screws, taking care not to fray the wires.
10. Insert the trigger wire into terminal 2 on the DIGITAL OUT connector and tighten
the screw, taking care not to fray the wire.
11. Insert the connectors into their ports on the back of the SIM.
12. Refer to the chapter System Controls in the NGC Chromatography Systems
and ChromLab Software User Guide for information about how to enable signal
output to the device.

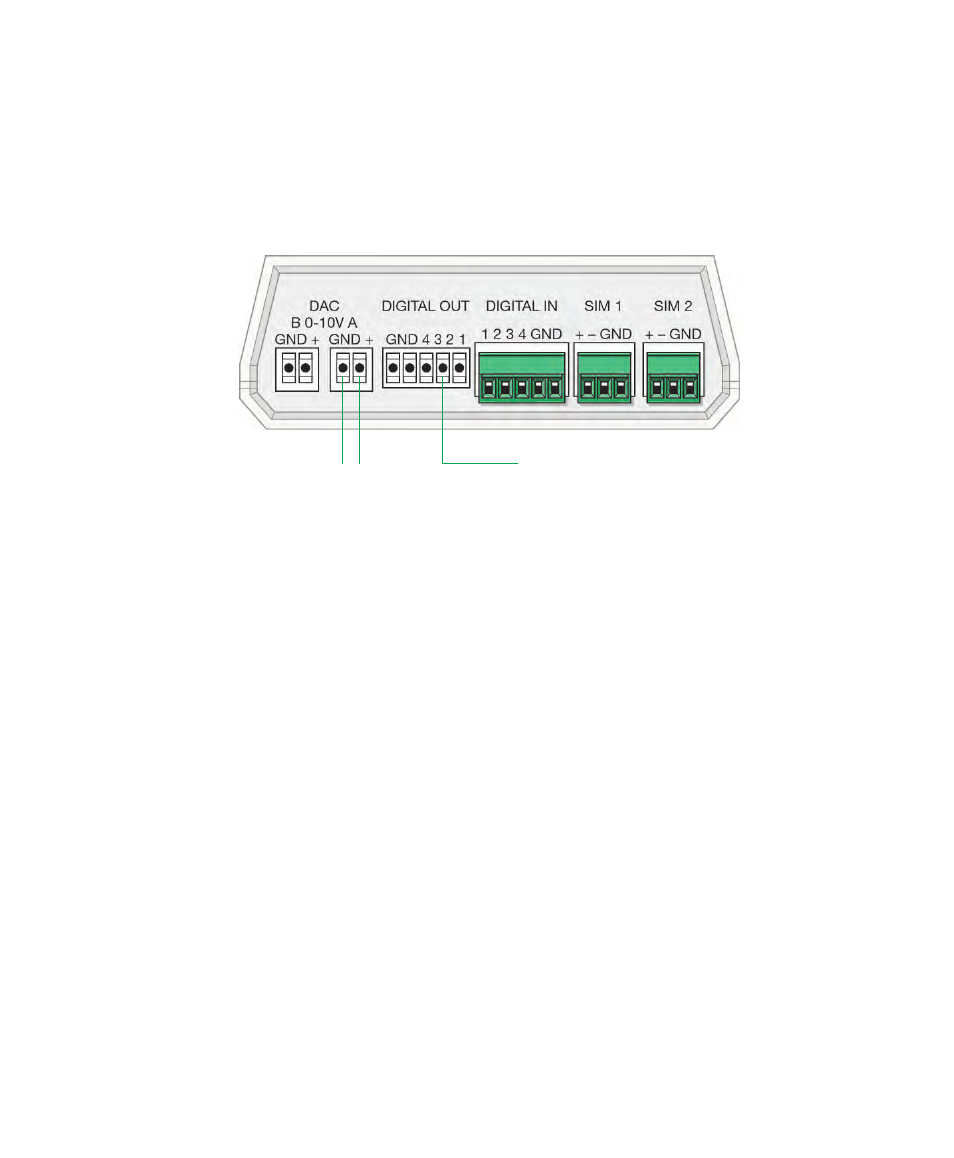

Trigger wire
Positive
wire Ground
wire
