5 | Plumbing and Priming the NGC Chromatography Systems
120 | NGC Chromatography Systems and ChromLab Software
Plumbing Sample Inlet Valves
Each sample inlet valve module includes all necessary tubing. The inlet tubing is
approximately 5' (1.5 m) in length. Determine the length of inlet tubing you need and
cut the tubing to the appropriate length.
Note: NGC inlet valves can be used for buffer or sample selection.

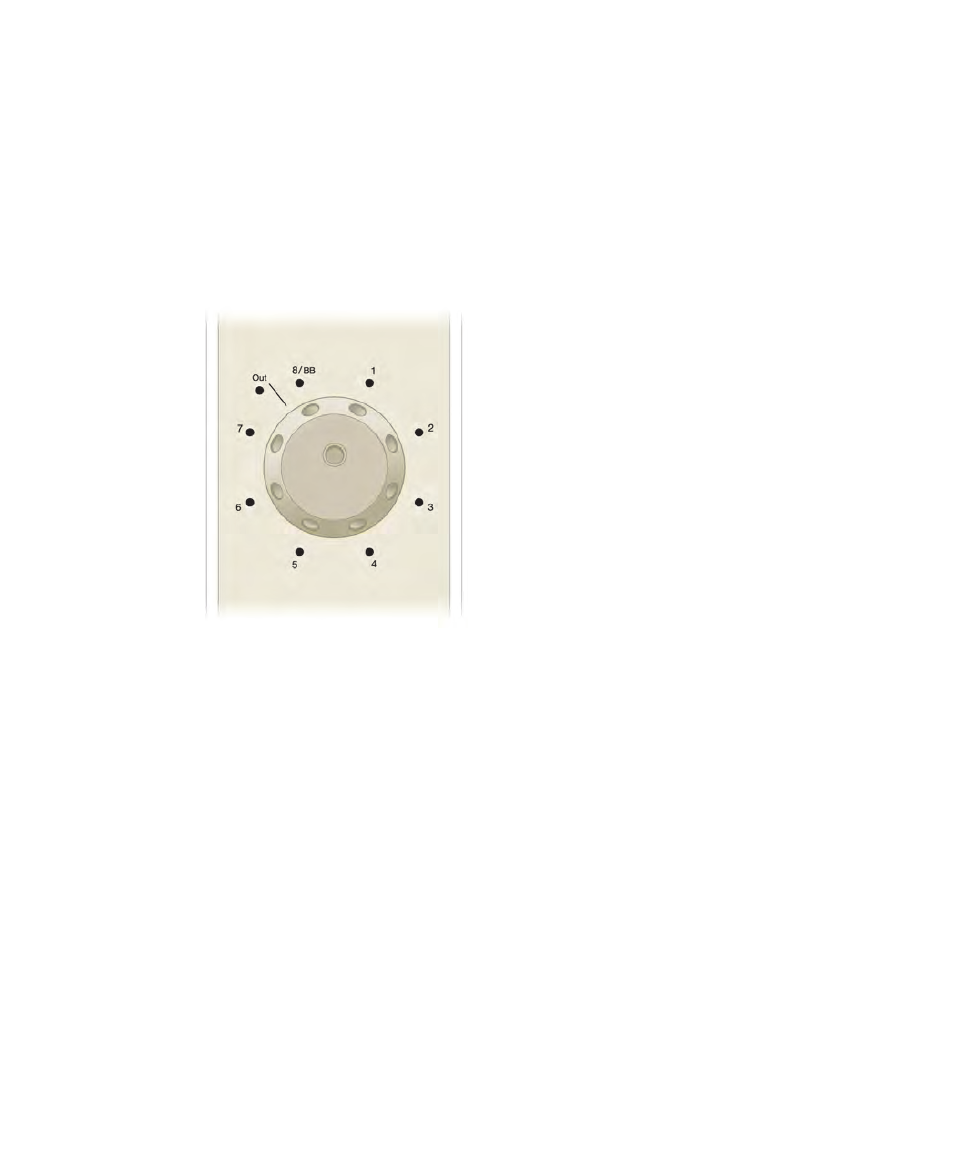

To plumb the sample inlet valves
1. If your system has only one sample inlet valve:
a. Connect tubing from the Out port on the sample inlet valve to the sample
pump inlet manifold.
b. Connect inlet tubing to ports 1–8 as needed.
