3 | Setting Up NGC Chromatography Systems
40 | NGC Chromatography Systems and ChromLab Software

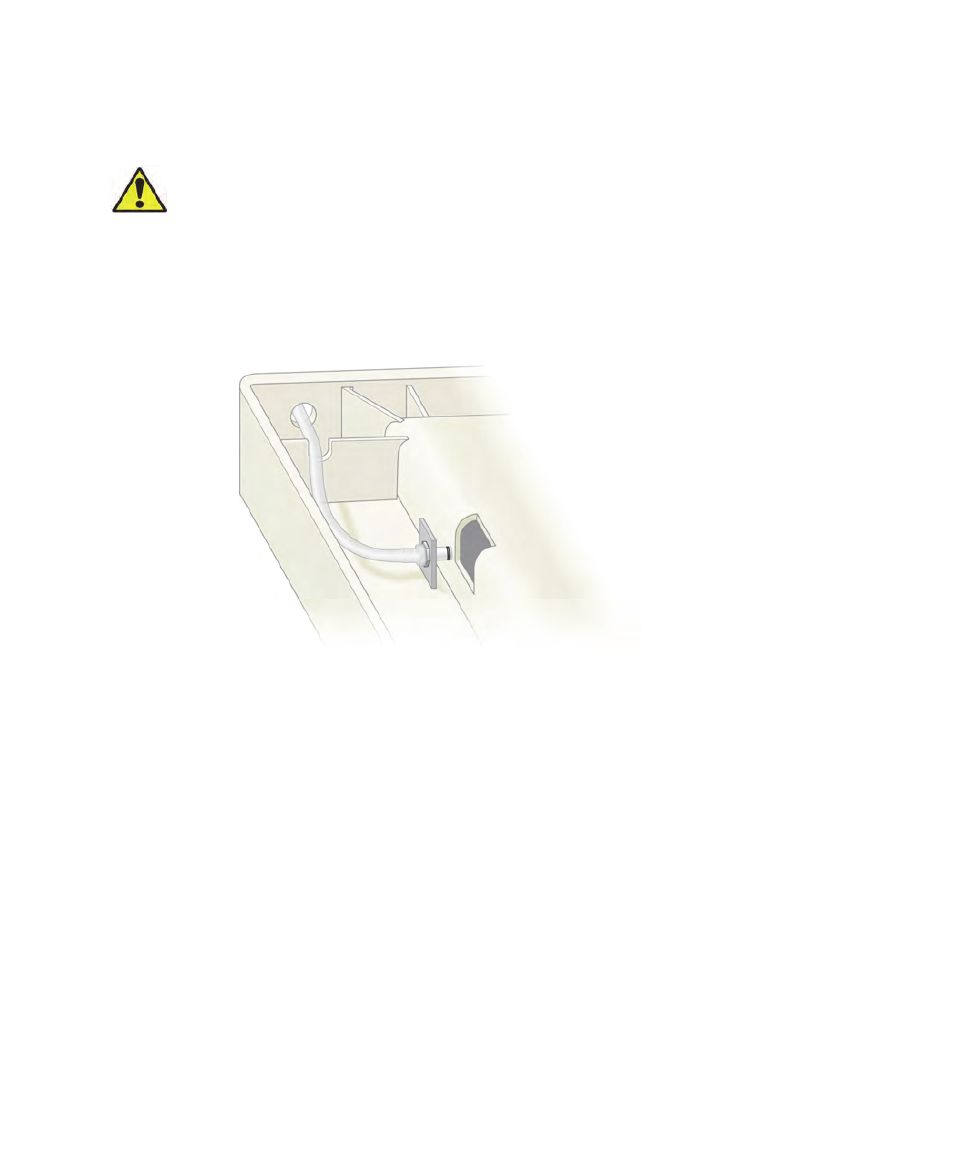

4. Uncoil the drain tube and insert it through the drain hole on the side of the top.
Caution: Ensure that no kinks are visible in the tube before connecting it
to the connector.
5. Grasp the interior end of the tube and push it onto the drain connector as far
back as possible to secure it in position.
The tube should rest in the interior notch and be positioned so that it bends
according to its natural coil.
