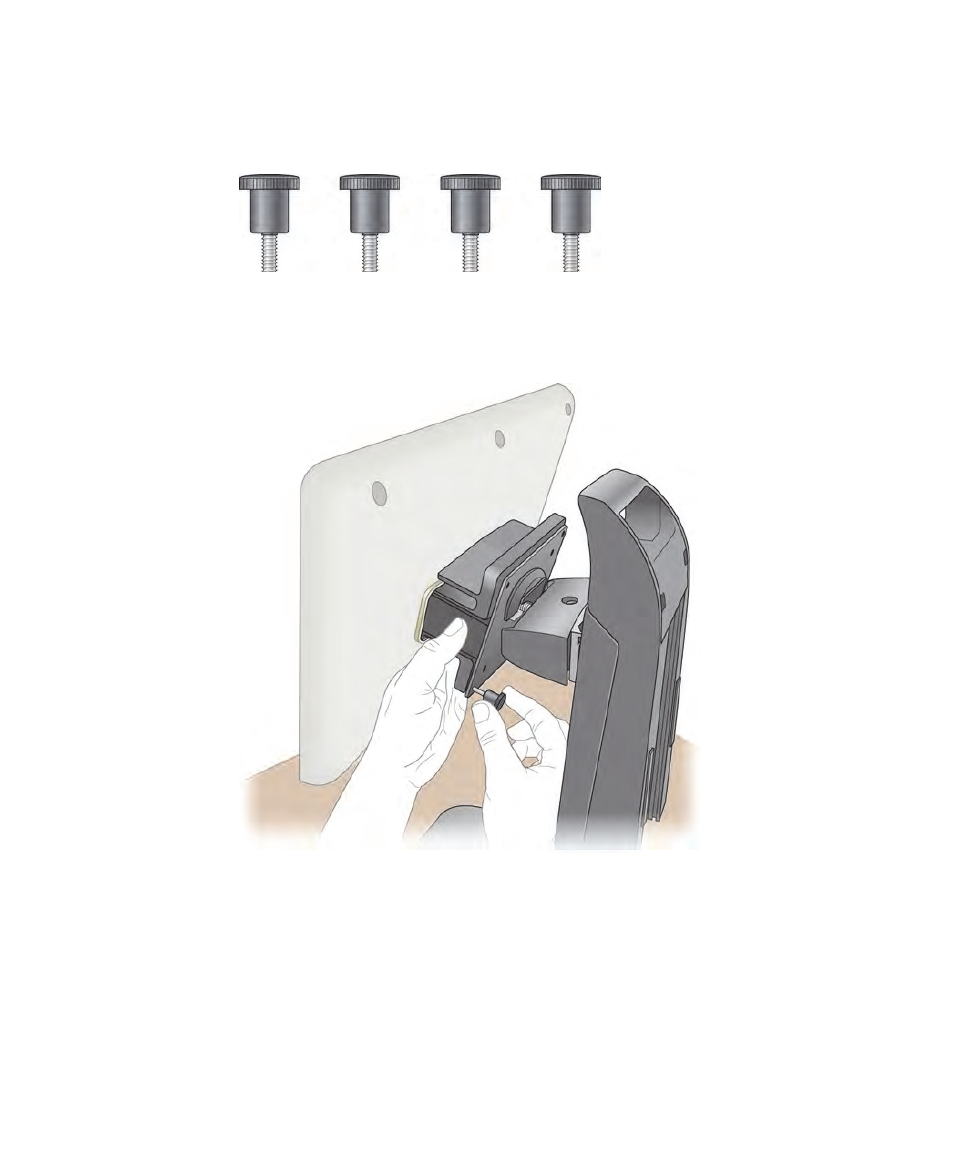

7. Locate the four thumb screws in the packaging for the touch screen stand.
8. Using the four thumb screws, loosely attach the touch screen bracket assembly
to the stand. Then tighten the thumb screws evenly after you have completed
the initial mounting.
9. Place the mounted touch screen on the table outside the cold cabinet.
10. Locate the end of the touch screen display cable that you routed through the
access port.
11. Firmly push the touch screen cable into the port at the bottom of the touch
screen mounting bracket and tighten the thumbscrews.
