Bio-Rad ChromLab™ Software User Manual
Page 117
Plumbing NGC Systems
Installation Guide
| 115
To plumb the buffer blending valve

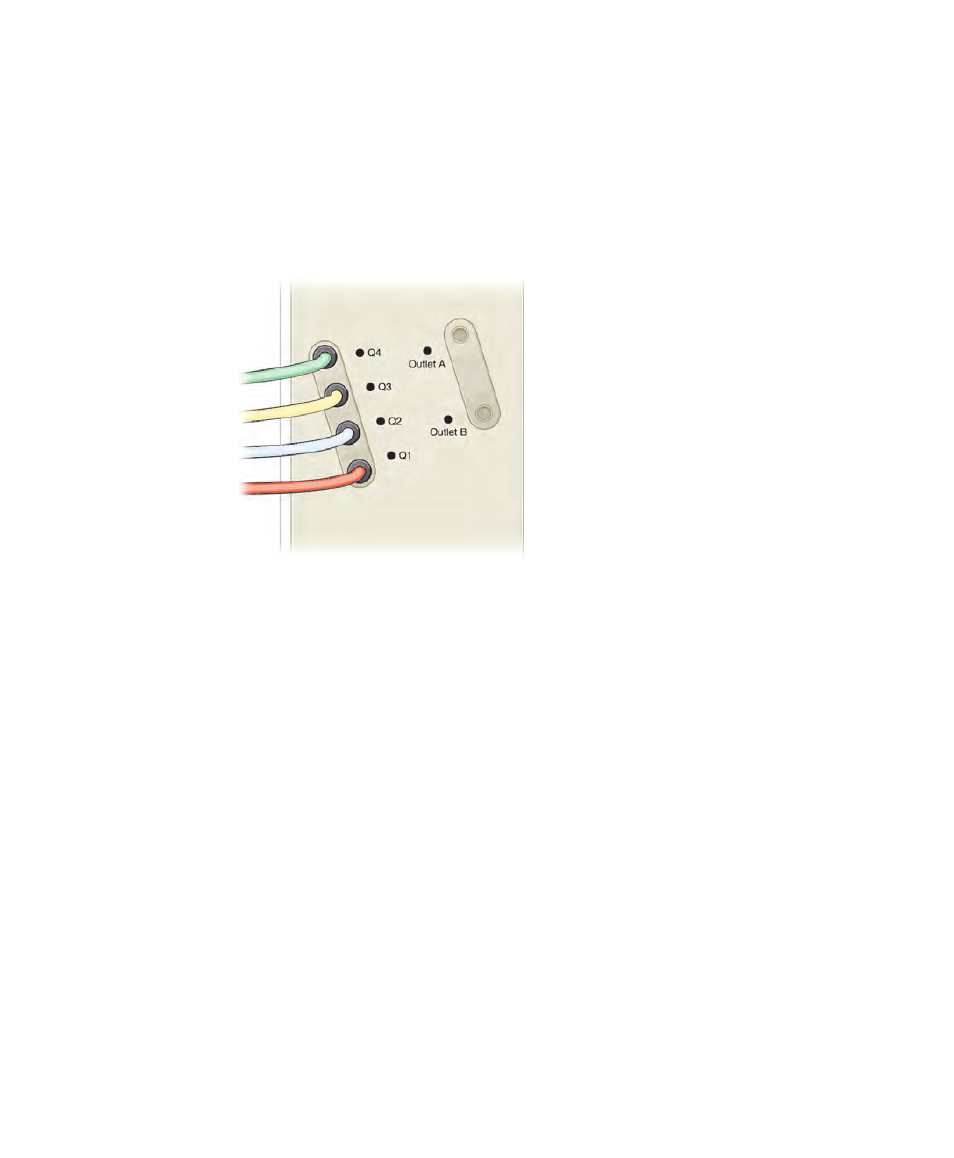

Connect the inlet tubing to ports Q1–Q4 on the buffer blending valve.
Note:
The buffer inlet tubing is color-coded to identify the different buffer
solutions.
The color scheme for the tubing and ports is defined as follows:
Green
Q4
High salt buffer
Yellow
Q3
Water
Blue
Q2
Buffer base
Red
Q1
Buffer acid
Tubing color
Port
Solution
