Bio-Rad ChromLab™ Software User Manual
Page 66

3
| Setting Up NGC Chromatography Systems
64
| NGC Chromatography Systems and ChromLab Software
Attaching and Activating Air Sensors
This section explains how to attach the air sensor module and the air sensors. It
also explains how to activate the air sensors after they are attached.
Note:
Bio-Rad recommends that all buffers be filtered and degassed prior to
use.

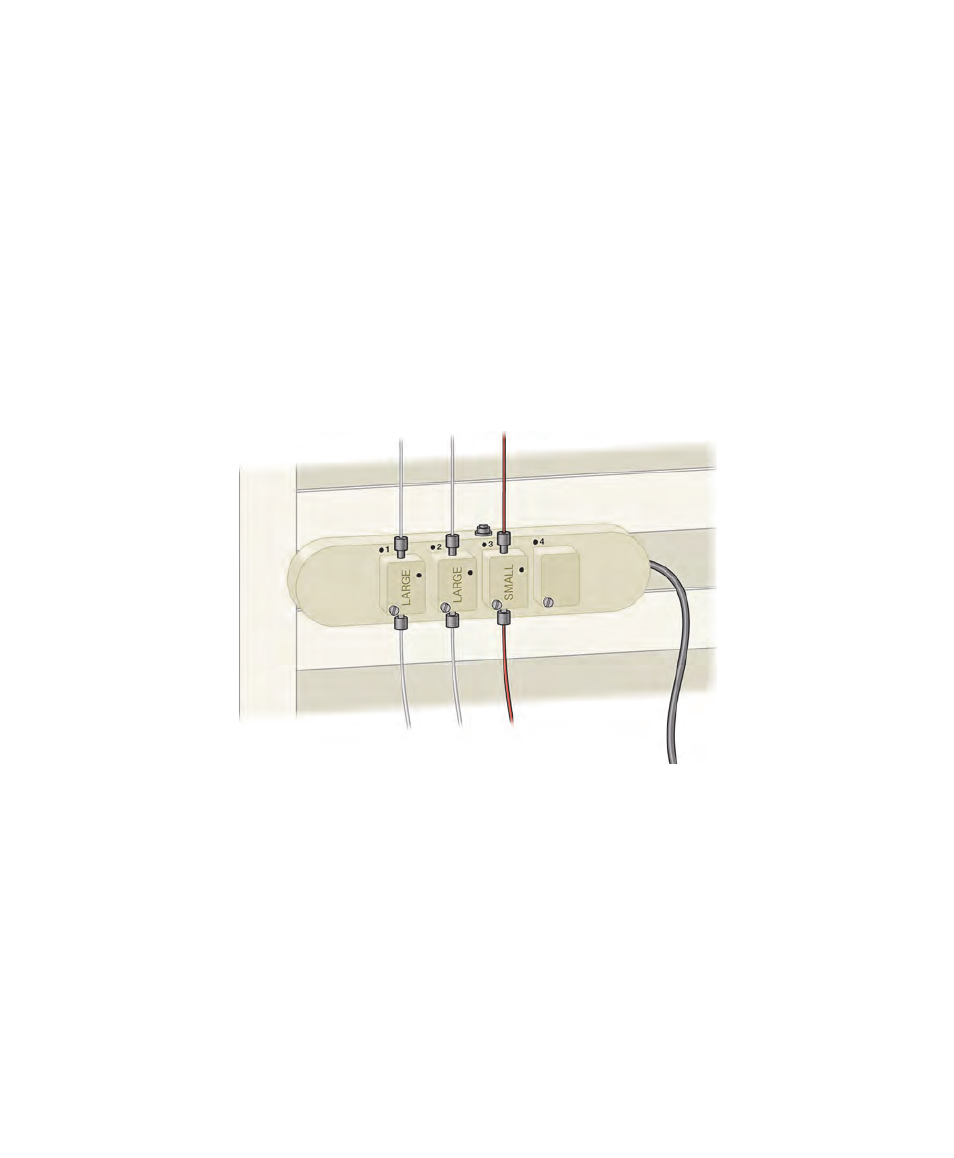

To attach the air sensor module and air sensors
1.
Ensure that the NGC instrument is powered off.
2.
Attach the air sensor module to one of the indented metallic strips on the side
of the instrument.
3.
Insert the connector cable on the air sensor module into one of the peripheral
connector ports on the side of the NGC instrument.
4.
To connect an air sensor to the sample pump:
a.
Connect the tubing from the sample container to one port on the air sensor
in the air sensor module.
b.
Connect the tubing from the other port on the air sensor to the inlet port of
the sample pump.
