3 | Setting Up NGC Chromatography Systems
32 | NGC Chromatography Systems and ChromLab Software

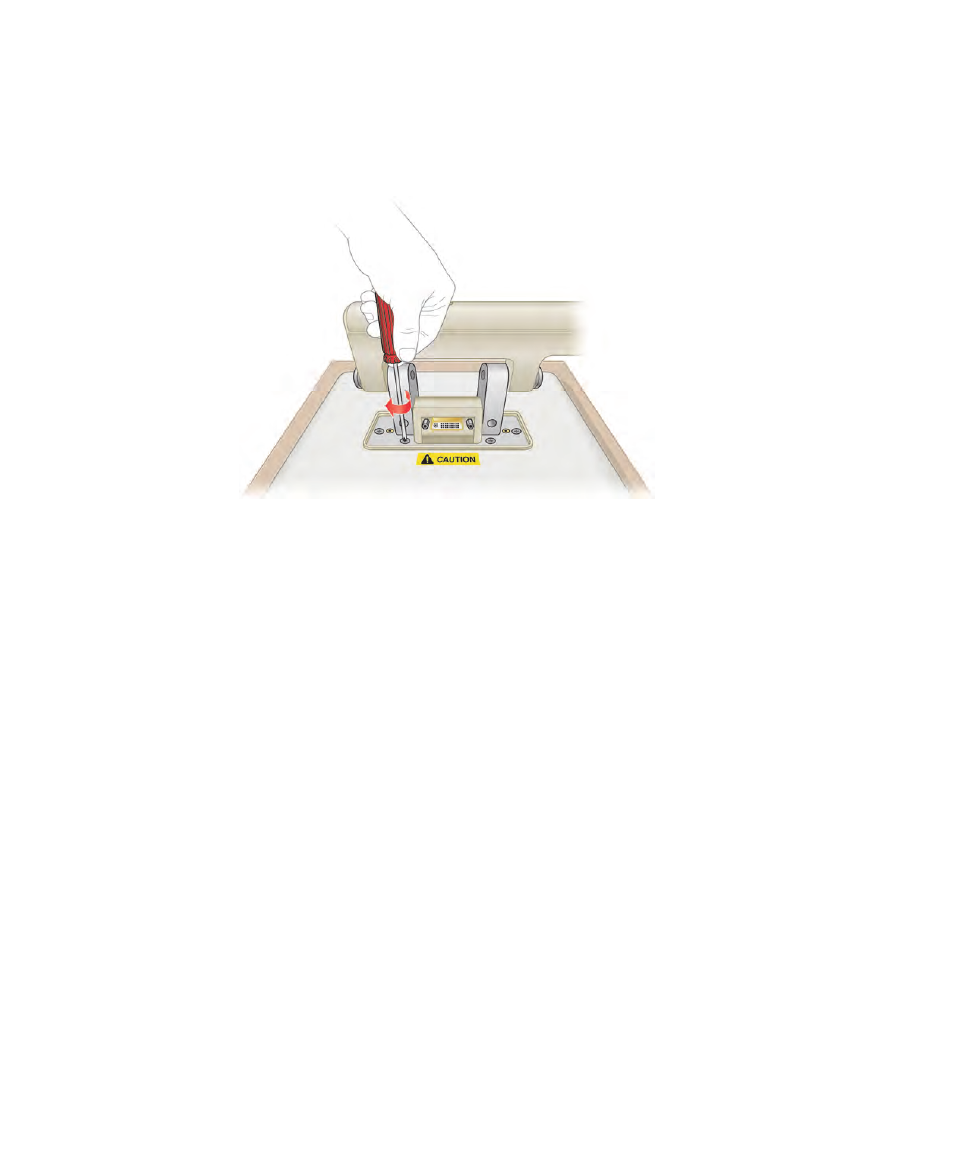

3. Using a Phillips screwdriver, remove the six screws that attach the touch screen
to the pivot arm assembly and place them aside.
4. Lift the pivot arm assembly off of the touch screen. The mounting assembly
should be in your right hand.
5. Turn the pivot arm assembly around 180° so that the mounting assembly is now
in your left hand and insert the assembly into its position on the back of the
touch screen.
6. Using the six screws that you removed in step 3, reattach the pivot arm
assembly to the touch screen with a Phillips screwdriver.
7. Reattach the cover to the back of the touch screen with the 7/64 hex key.
8. Pivot the touch screen so that the screen faces forward and the cable
connector is at the bottom of the screen.
