Attaching the Touch Screen
Installation Guide
| 31
Repositioning the Touch Screen Pivot Arm Assembly
If you attach the touch screen to the right side of the NGC instrument, you must
reposition its pivot arm assembly before mounting the touch screen onto the
mounting bracket.
To reposition the touch screen’s pivot arm assembly
1.
Place the touch screen monitor face down on a clean surface to prevent
scratching.
2.

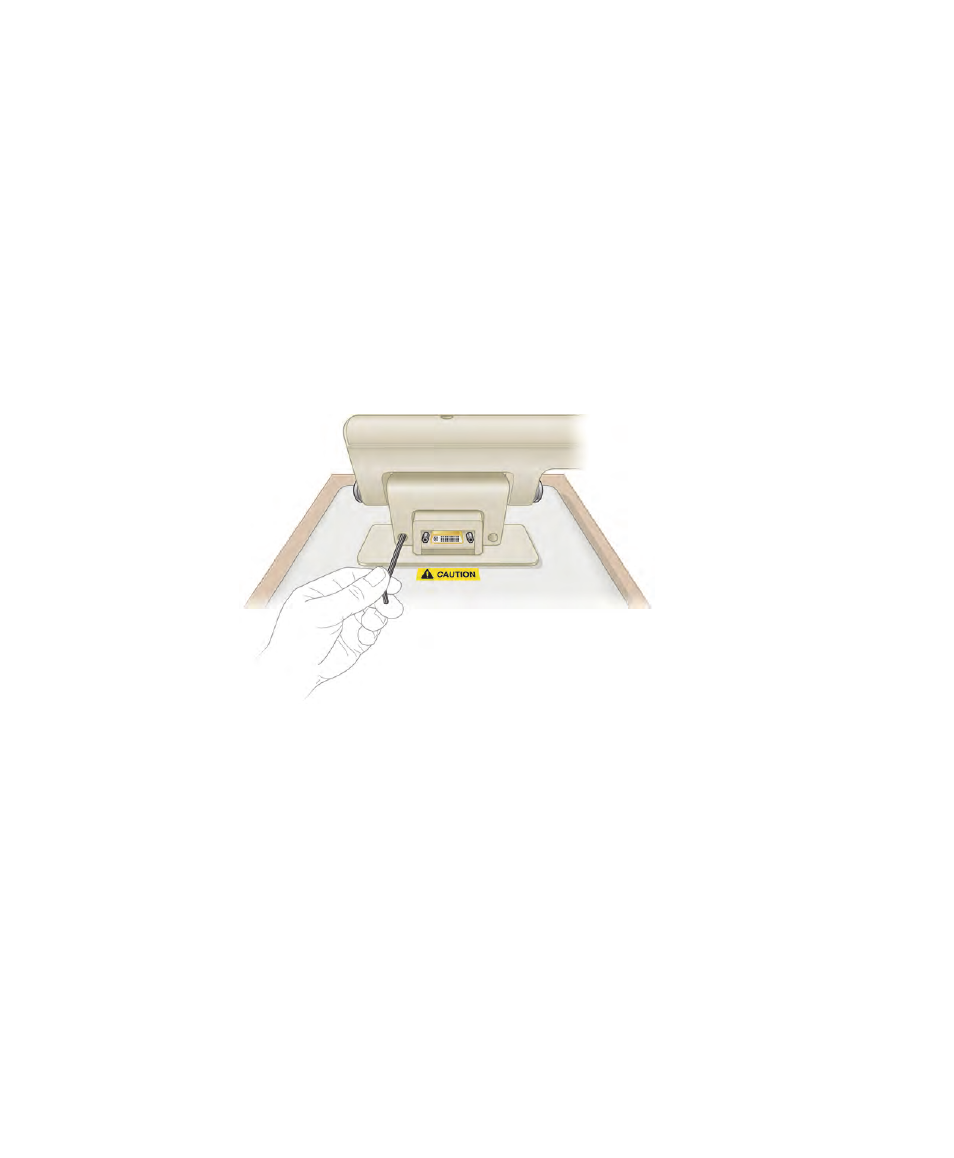

Using the 7/64 hex key provided in the accessories kit, remove the cover from
the back of the touch screen monitor.
