Attaching the Touch Screen

Installation Guide

| 25

Note:

The top section in this image is a third tier. (The NGC Discover

system is a 3-tier system.) The touch screen is attached at the top of the

second tier. If you have an NGC Quest or an NGC Scout system, you will

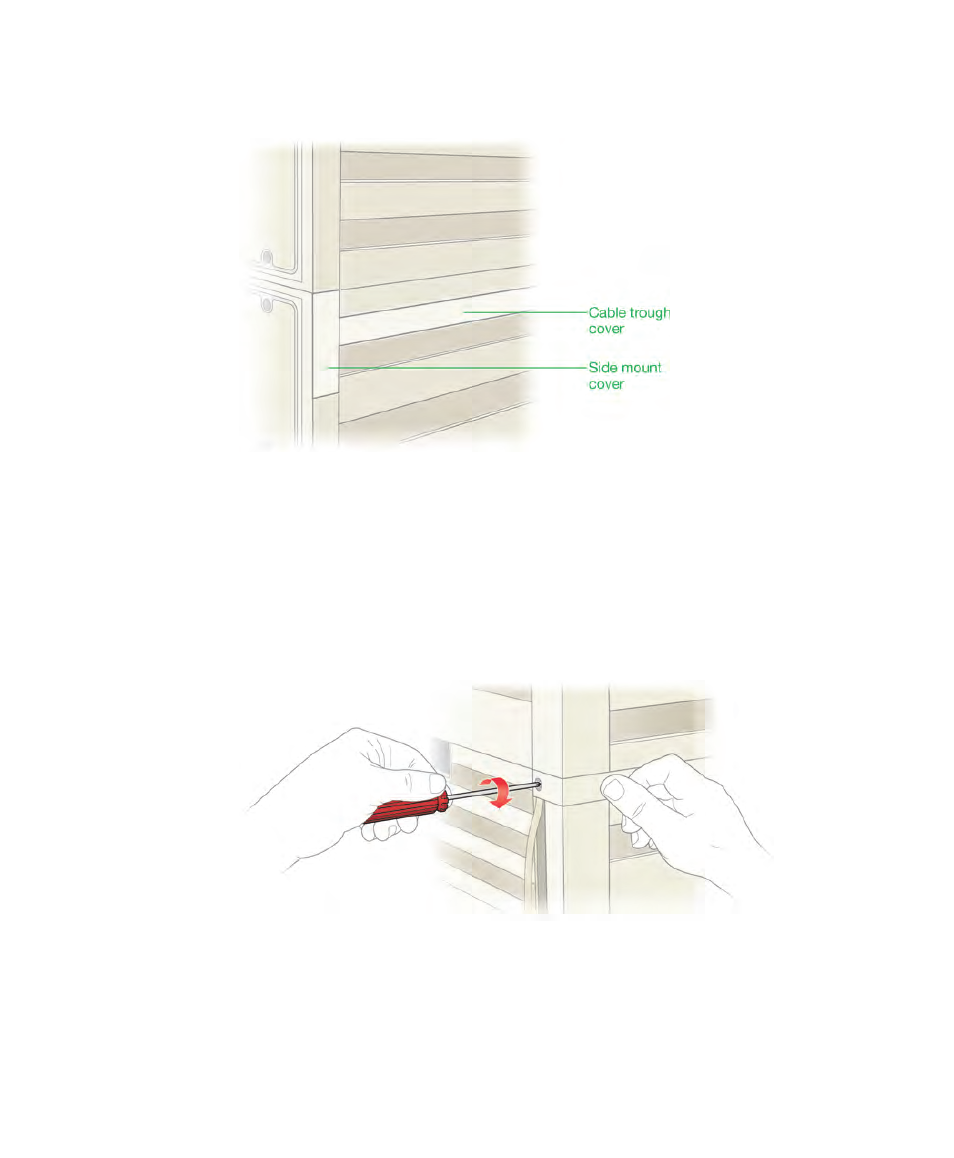

not have a third tier. Locate the side mount cover at the top of the second

tier.

Using a Phillips screwdriver, remove the screw that secures the cable trough
cover to the back of the instrument.

Note:

Store these components in a safe place for future use.
