Priming and Purging the System
Installation Guide | 129
Purging the NGC Scout System
To purge the buffer blending valve

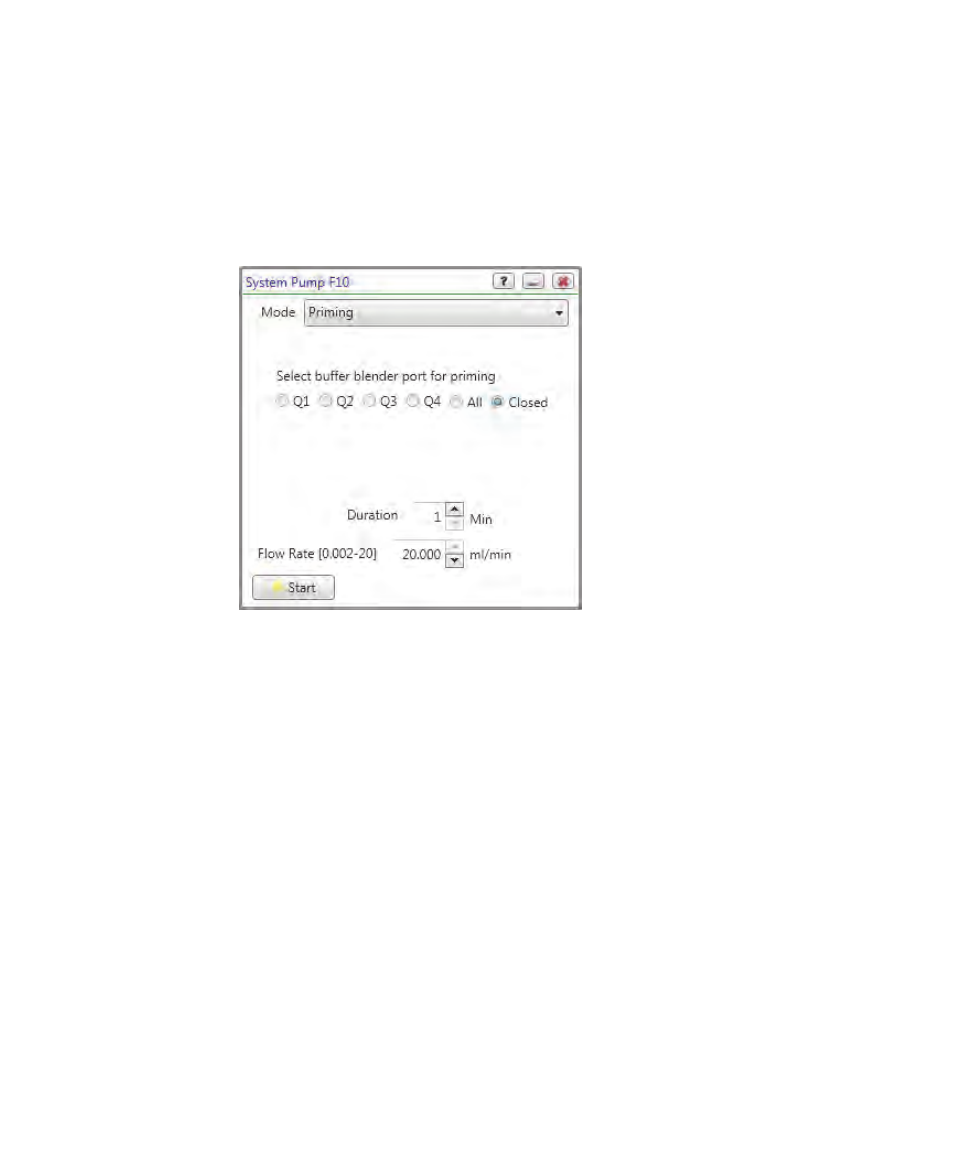

1. Open the System Pump dialog box and select Priming in the Mode dropdown
list.
 To purge an individual line of air bubbles, proceed to step 2 on page 129.
 To purge all lines of air bubbles sequentially, proceed to step 3 on
page 130.
2. To manually purge an individual line of air bubbles and fill it with buffer:
a. Select a port to open.
b. (Optional) Change the default flow rate.
The default flow rate is set to 20 ml/min.
c. Click Start.
d. Repeat steps 2a–c for any other port to purge.
