6. Place the expansion tier on top of the already installed tier.
Tip: If your NGC instrument is on a lab bench, consider using a step stool
to place the fourth tier onto the third tier.
Tip: Although the images in this section show how to attach the fourth
expansion tier to an already installed third tier, the procedure for attaching
a third tier to a second tier is the same. These images are examples.
7. Locate the connector cable that ships with the expansion tier.

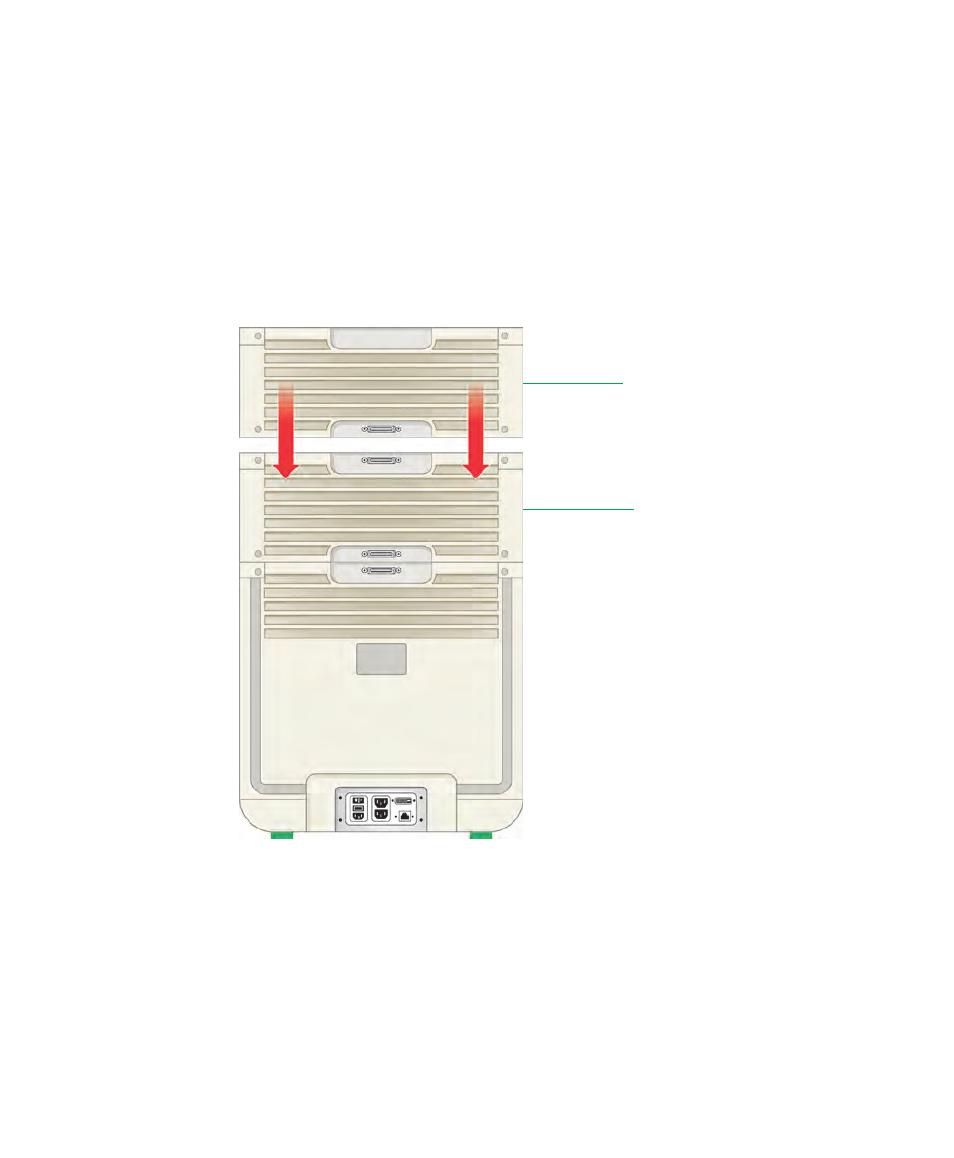

Upper expansion tier
Previously attached
lower tier
