Attaching the Touch Screen

Installation Guide

| 33

9.

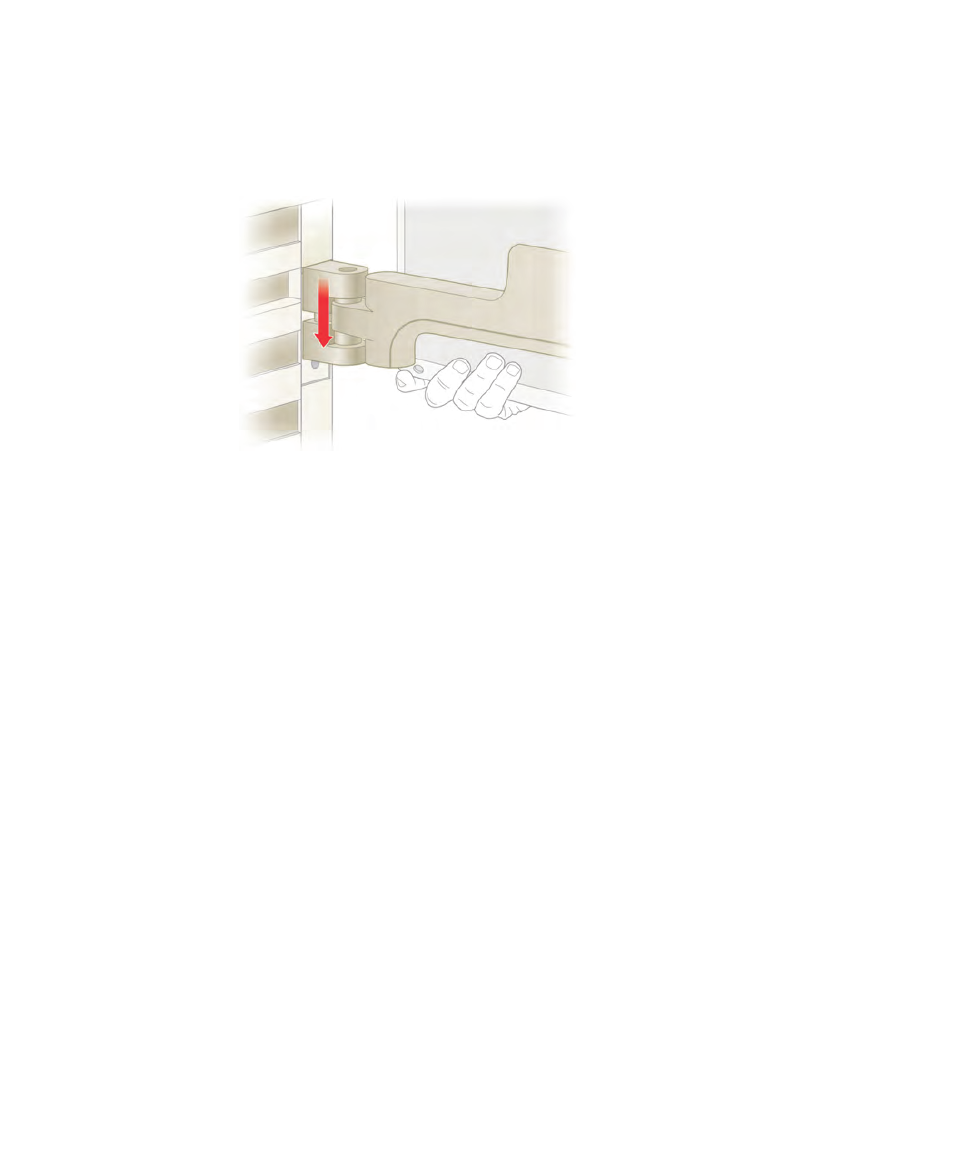

After you attach the mounting post to the side of the instrument, slide the touch
screen display onto it.

10. Insert a ¼-20 x ¾" hex bolt underneath the mount to secure the touch screen.
