3 | Setting Up NGC Chromatography Systems
52 | NGC Chromatography Systems and ChromLab Software
5. (Optional) Convert the bay to a single-wide bay or a double-wide bay.
See Converting Bays to Fit Modules on page 53 .
6. Locate the module that you plan to install and remove it from its packaging.

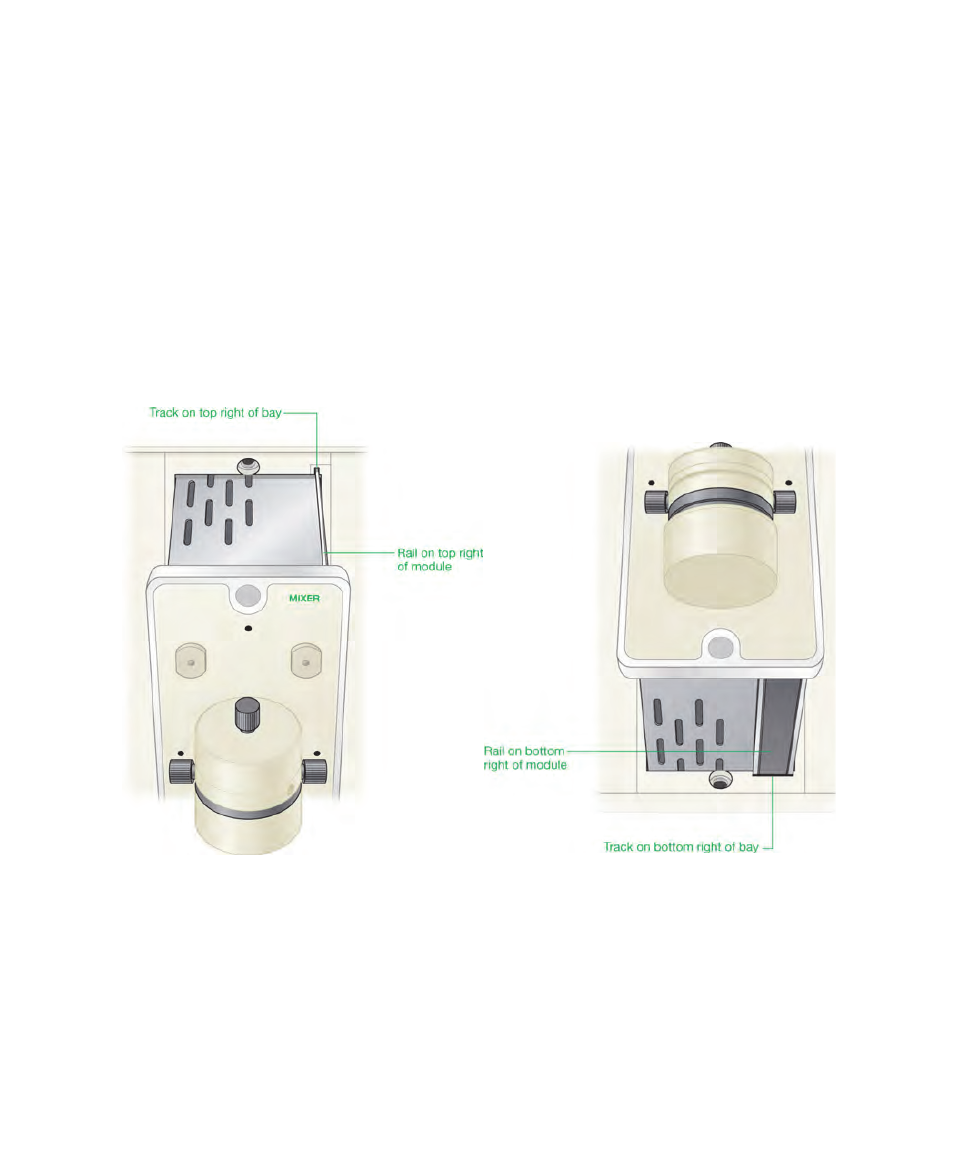

7. The frame of the bay has tracks on the top and bottom of the right side. The
module has guide rails on the top and bottom right side.
Align the rails on the module with its track in the bay to properly guide it into
position.
Bottom of Module Top of Module
8. Place the module into the open bay and gently slide it in as far as it will go.
Note: Each module has an alignment pin on the back to ensure that it
aligns correctly with the main communication board.
9. Ensure that the screw holes on the module align with the holes on the bay.
