Page 60

60
Rockwell Automation Publication ENET-UM001L-EN-P - March 2014
Chapter 5 Control I/O
Using rack optimization for an I/O module creates tags as aliases for the adapter
module’s tags. This logic displays the device’s tag as an alias for the adapter
module’s tag. In this example, the tag name of the adapter is in angle brackets.

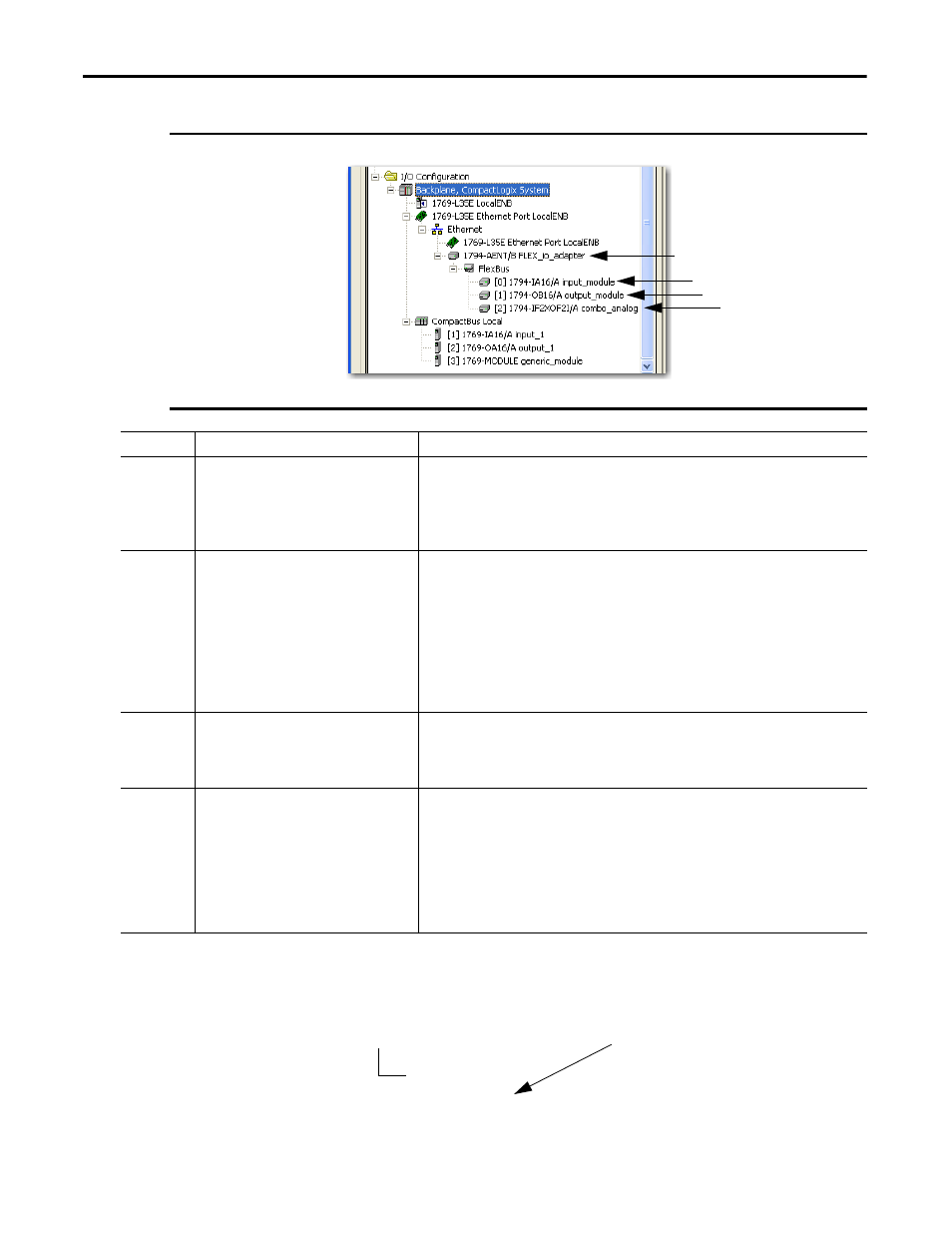

EXAMPLE
1
2
3
4
Example
Module
Example Tag Names (automatically created by the software)
1
Remote 1794-AENT adapter “FLEX_io_adapter”
FLEX_io_adapter:I
FLEX_io_adapter:I.SlotStatusBits
FLEX_io_adapter:I.Data
FLEX_io_adapter:O
FLEX_io_adapter:O.Data
2
Remote 1794-IA16
“input_module” in slot 0
Rack-optimized connection
FLEX_io_adapter:0:C
FLEX_io_adapter:0:C.Config
FLEX_io_adapter:0:C.DelayTime_0
FLEX_io_adapter:0:C.DelayTime_1
FLEX_io_adapter:0:C.DelayTime_2
FLEX_io_adapter:0:C.DelayTime_3
FLEX_io_adapter:0:C.DelayTime_4
FLEX_io_adapter:0:C.DelayTime_5
FLEX_io_adapter:0:I
3
Remote 1794-OB16
“output_module” in slot 1
Rack-optimized connection
FLEX_io_adapter:1:C
FLEX_io_adapter:1:C.SSData
FLEX_io_adapter:1:O
FLEX_io_adapter:1:O.Data
4
Remote 1794-IF2XOF2I
“combo_analog” in slot 2
Direct connection
FLEX_io_adapter:2:C
FLEX_io_adapter:2:C.InputFIlter
FLEX_io_adapter:2:C.InputConfiguration
FLEX_io_adapter:2:C.OutputConfiguration
FLEX_io_adapter:2:C.RTSInterval
FLEX_io_adapter:2:C.SSCh0OuputData
FLEX_io_adapter:2:C.SSCH1OutputData
FLEX_io_adapter:2:I
Conveyor:2:I.0
Tag Name of the I/O Device
Tag Name of the Adapter
