108 Rockwell Automation Publication ENET-UM001L-EN-P - March 2014
Chapter 9 Diagnostic Web Pages
1756-EN2TR Module These are the most commonly used diagnostic web pages for the 1756-EN2TR
module:
• Diagnostic Overview Page
• Ethernet Statistics Web Page
• Ring Statistics Web Page
Diagnostic Overview Page
The Diagnostic Overview web page presents a summary of the current
configuration and overall status of the module.

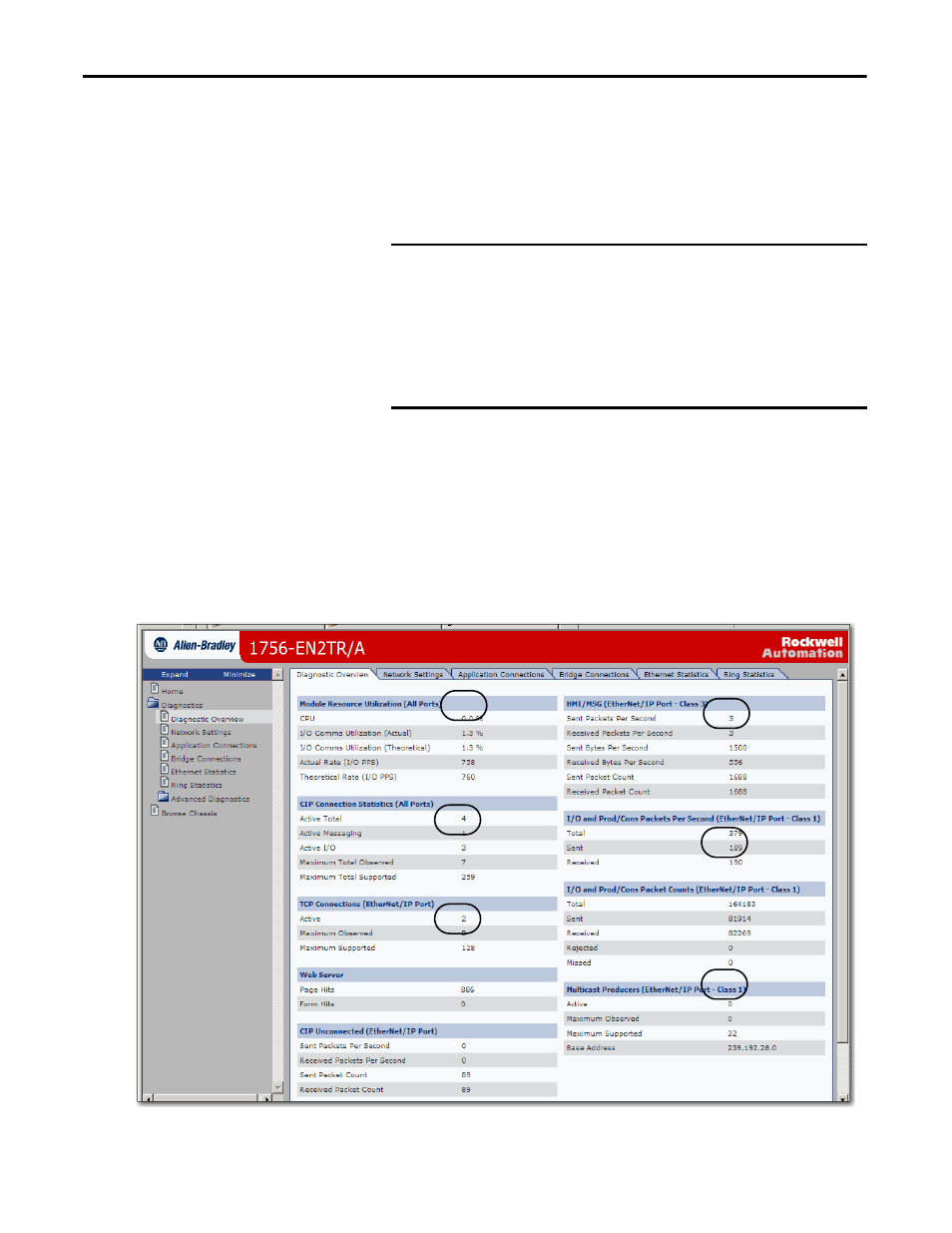

The most commonly monitored fields are circled in the graphic and described in
the table that follows.
IMPORTANT The 1756-EN2TR module also offers these diagnostic web pages for
monitoring the module:
• Network Settings
• Application Connections
• Bridge Connections
These web pages are not as commonly used as the three described in
this section and are not described here.
