40 Rockwell Automation Publication ENET-UM001L-EN-P - March 2014
Chapter 4 Configure a Supervisor on a Device-level Ring Network
Enable Ring Supervisor in the Studio 5000 Environment
After you add a supervisor-capable module to the Studio 5000 environment
project and configure it, you must enable the module to function as a
ring supervisor.
This chapter describes how to enable a 1756-EN2TR module as a ring supervisor.
For more information on enabling other modules as ring supervisors, see
EtherNet/IP Embedded Switch Technology Application Guide, publication
ENET-AP005 .
To enable a ring supervisor, follow these steps.

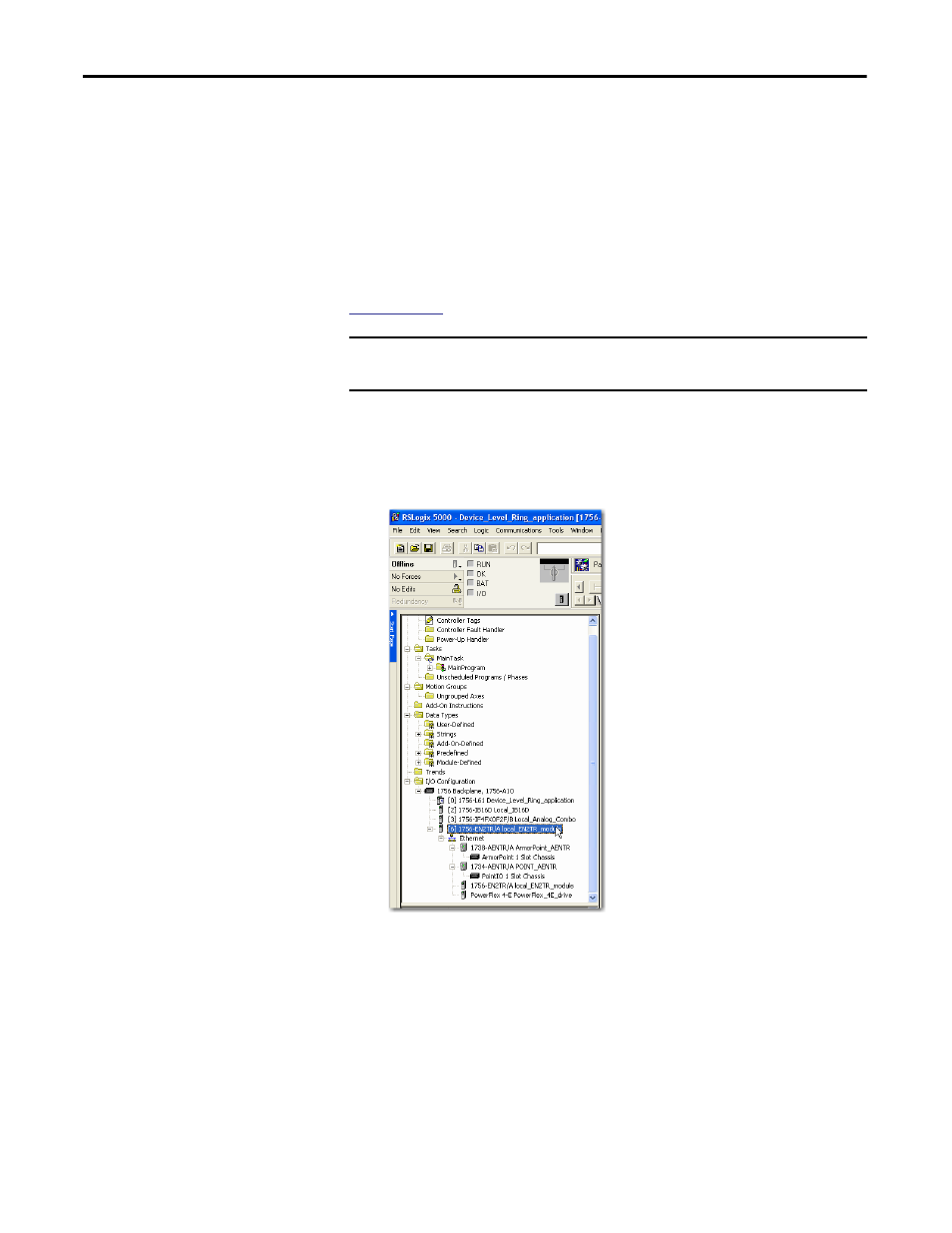

1. With your project online, double-click the supervisor-capable device in
the I/O configuration tree.
IMPORTANT You must be online to enable a ring supervisor in the Studio 5000
environment.
