Chapter 8 Communicate with PanelView Terminals

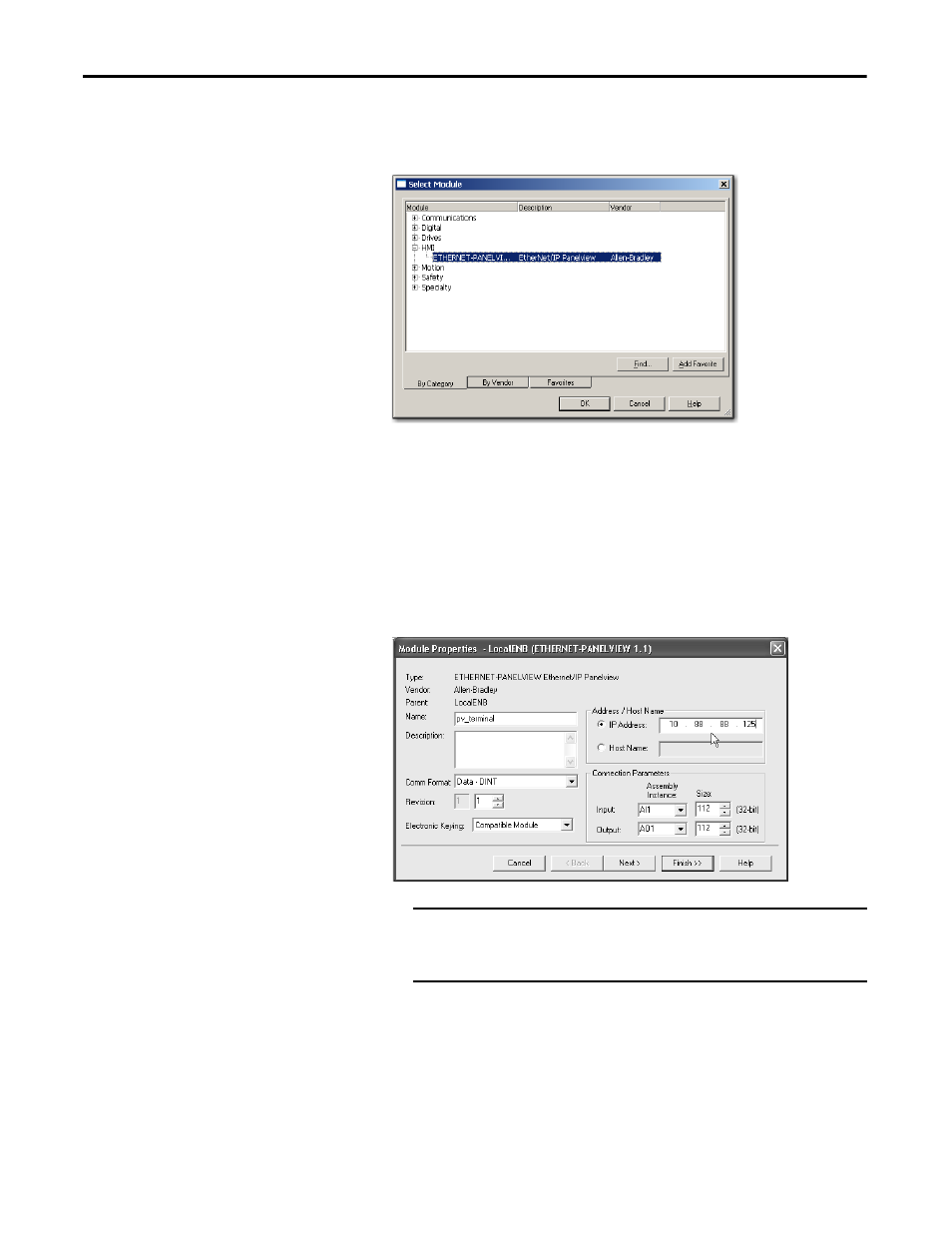

7. Click the By Category tab.
8. Choose the EtherNet/IP PanelView terminal and click OK.
The Module Properties dialog box appears.
9. Configure the PanelView terminal.
• In the Name field, type the name of your new module.
• From the Comm Format pull-down menu, choose Data-DINT.
• From the Electronic Keying pull-down menu, choose Disable Keying.
• In the IP Address field, type the IP address.
• In the Input and Output fields, type the connection parameters.
10. Click Finish.
IMPORTANT
You can establish up to eight different instances with each
terminal. For example, one controller can use all eight
instances or eight controllers can each use one instance.
