Rockwell Automation Publication PROCES-UM002A-EN-P - July 2014
95

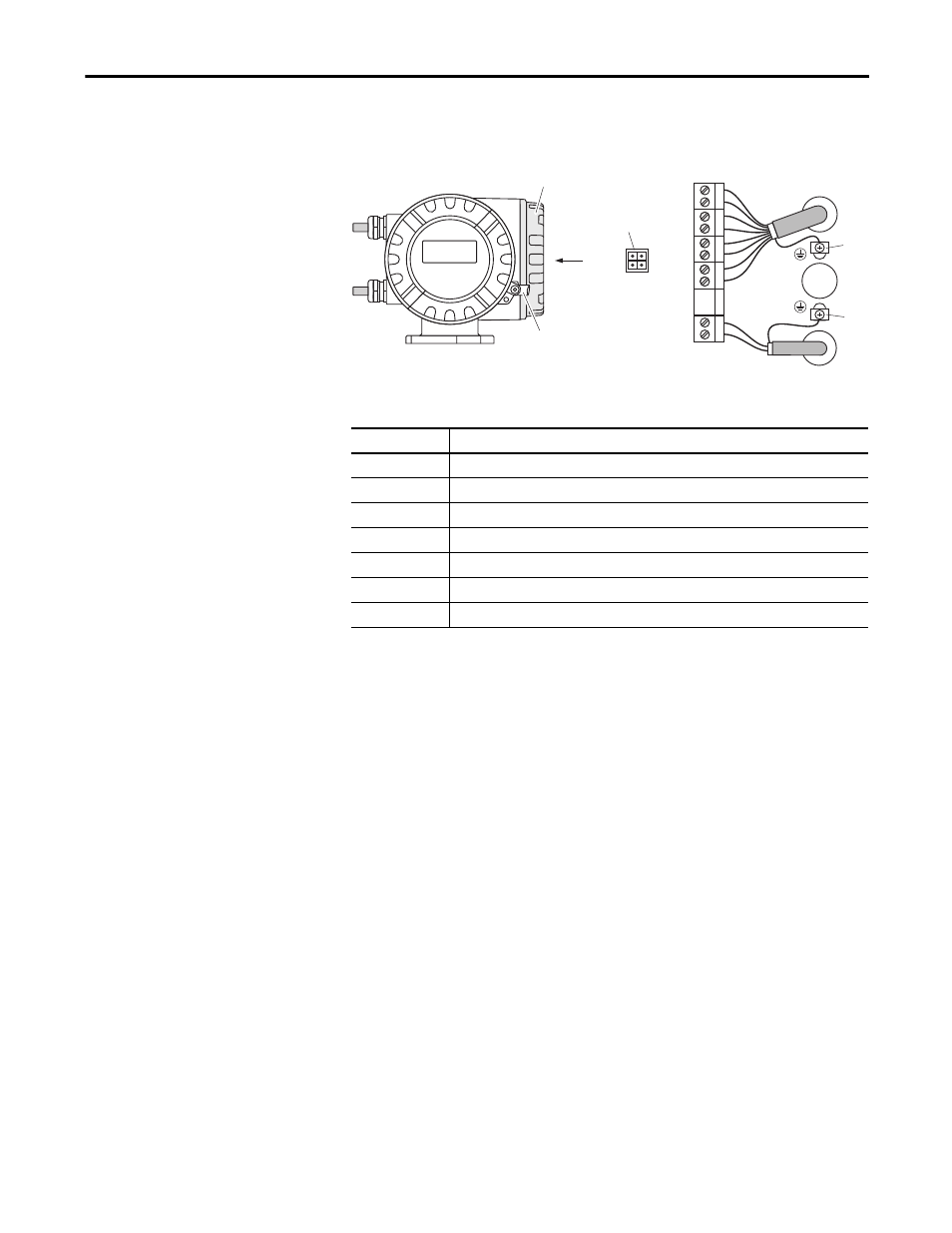

Promass 83 Coriolis Mass Flowmeter
Appendix C
5. Screw the cover of the connection compartment (g) firmly onto the
transmitter housing.
b
b
c
d
a
a
2
1
– 27
– 25
– 23
– 21
+ 26
+ 24
+ 22
+ 20
L1 (L+)
N (L-)
g
f
e
Item
Description
a
Cable for power supply: 85...260 V AC, 20...55 V AC, 16...62 V DC
b
Signal cable
c
Ground terminal for protective conductor
d
Ground terminal for signal cable shield
e
Service adapter for connecting service interface FXA 193 (Fieldcheck, FieldCare)
f
Cover of the connection compartment
g
Securing clamp
