Chapter 5
Visualization

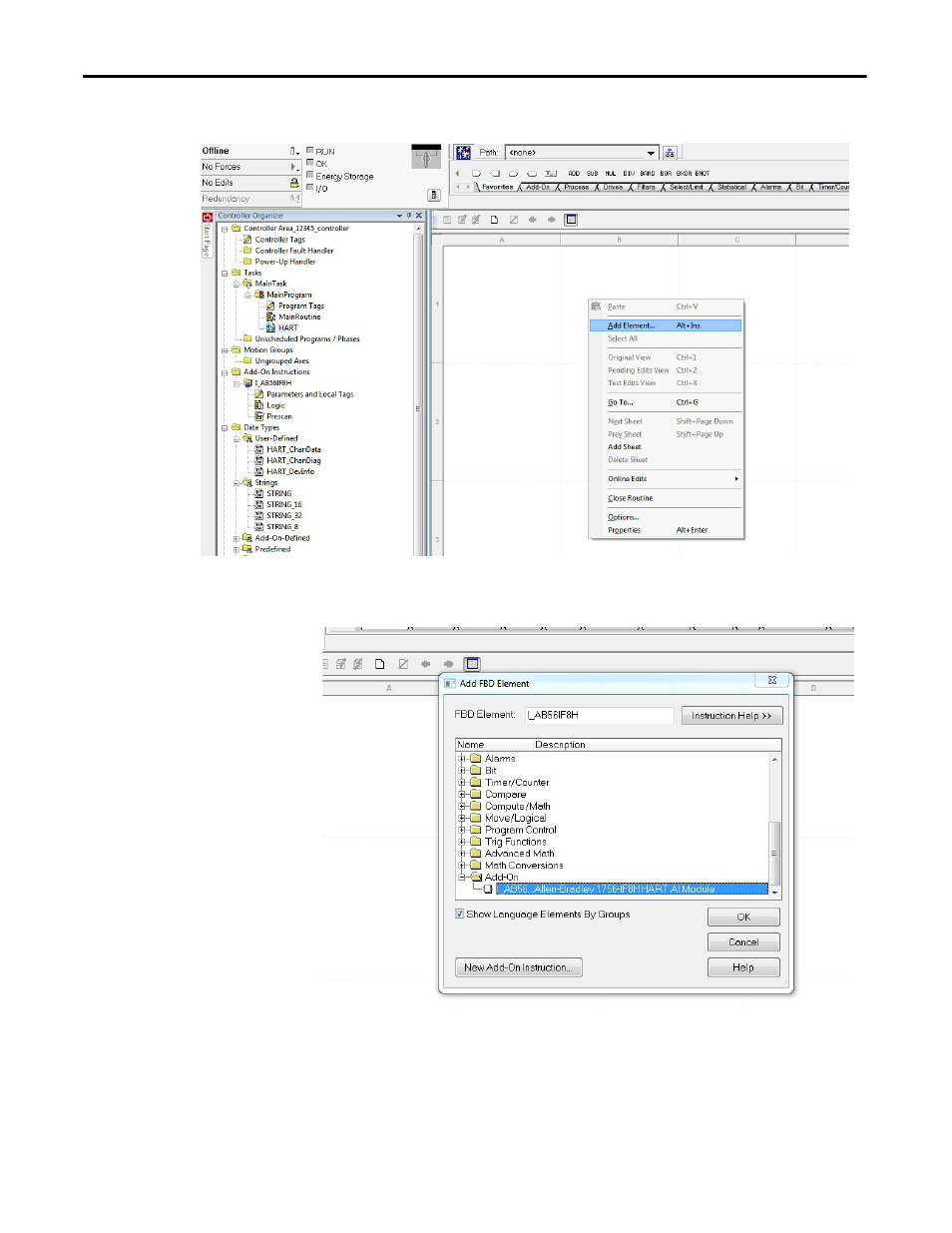

2. Right click in field of the sheet and select Add Element.
3. Browse to the Add-On Instruction folder, select the Add-On Instruction,
and click OK.
Repeat this process for each required Add-On Instruction. Each analog input
module needs one I_AB56IF8H(for 8 channel) or I_AB56IF16H(for 16
channel), one I_AB56IFxH_Chan per HART device, and one P_AIn56H per
device.
