Global Object
A global object links the tag name to the faceplate, provides a touch area for the
faceplate to be launched from, and displays the process variables and alarms.
Add Global Objects to a Display
Follow these steps too add global objects.
1. Open the (RA-BAS) P_AIn Graphics Library by expanding the Global
Objects and double-clicking on the library.

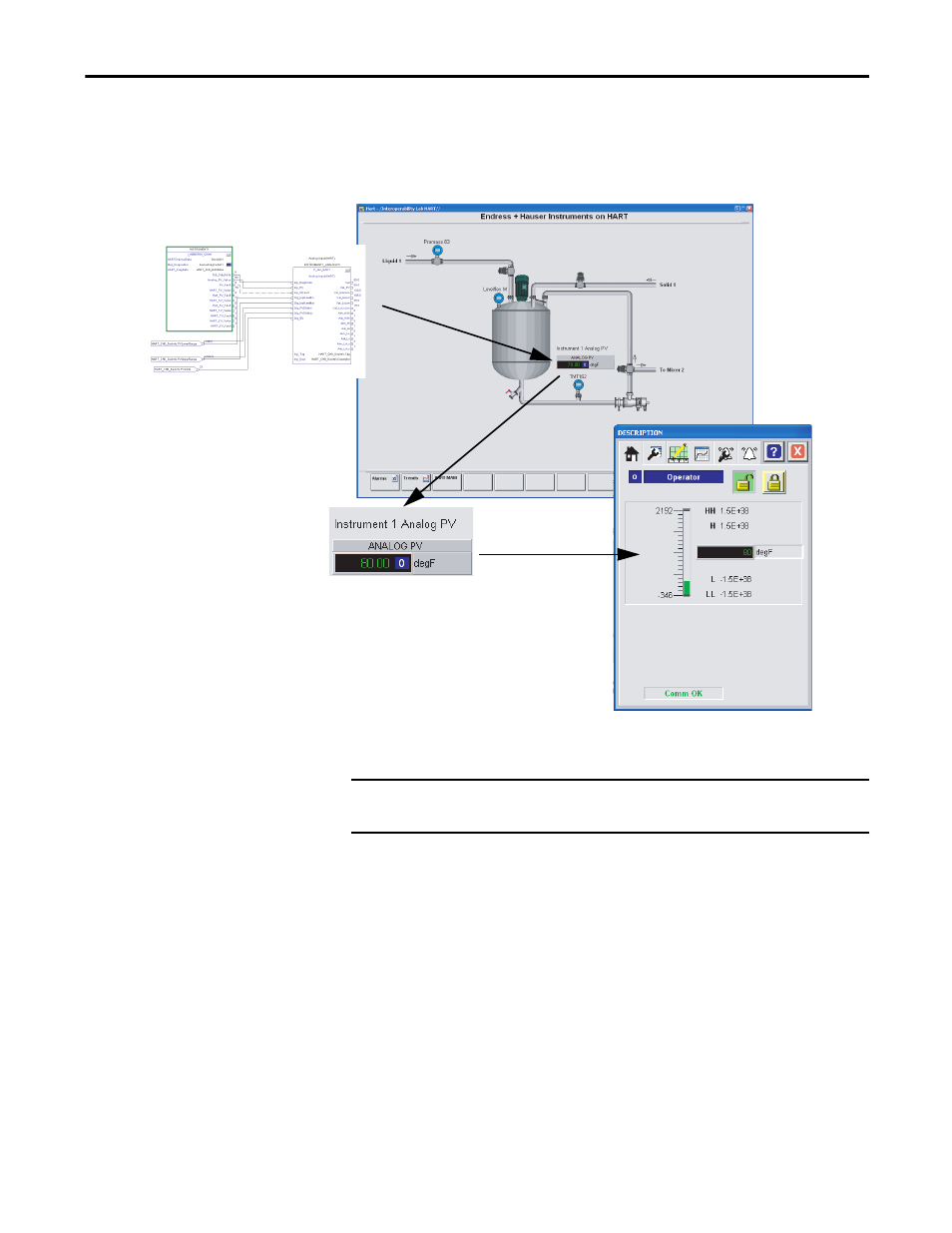

FactoryTalk View SE Display
Add-On Instructions in a
function block routine.
Click on global object.
Global object
IMPORTANT
A unique global object and faceplates are available for each field instrument
due to the display of instrument-specific diagnostic information.
