Rockwell Automation Publication PROCES-UM002A-EN-P - July 2014
Appendix M
Liquiline M CM42 Transmitter
Sensor Connection: Conductivity

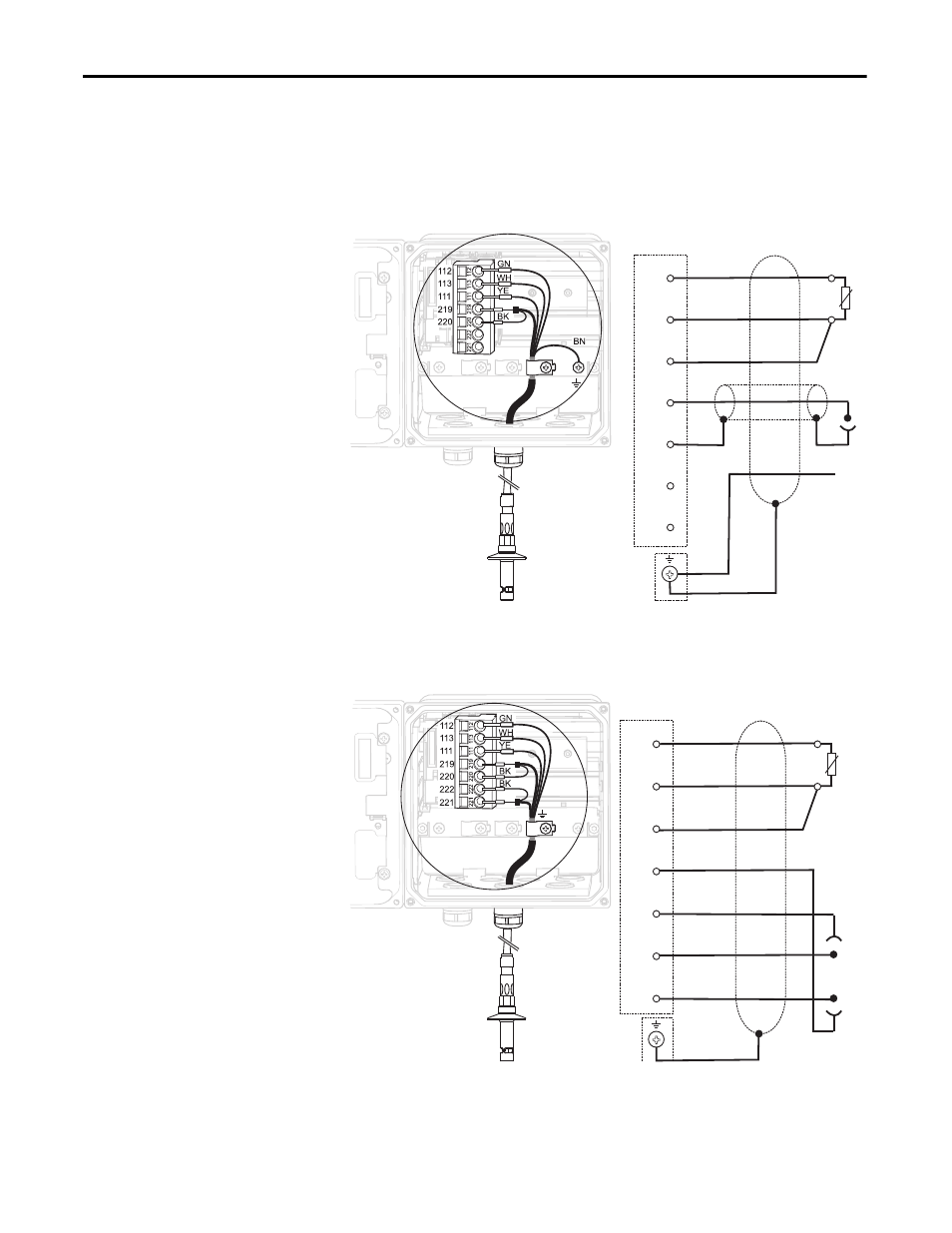

Following are figures of the conductive sensors, two-electrode sensors view in
device (left) and wiring diagram (right).
Following are figures of the conductive sensors, four-electrode sensors view in
device (left) and wiring diagram (right).
BK
BN
GN
WH
YE
CPK9 / CYK71
221
222
112
113
111
CM42
220
219
J
Sensor
d.n.c.
221
222
112
113
111
CM42
220
219
J
Sensor
