Appendix G
Micropilot M Radar Level
• Rod antenna with inactive length:
Reliable measurement in narrow nozzles, with condensation and build-up
in the nozzle.
Measured Variables
The measured variable is the distance between a reference point and a reflective
surface (i.e. medium surface). The level is calculated based on the tank height
entered. The level can be converted into other units (volume, mass) by means of a
linearization (32 points).

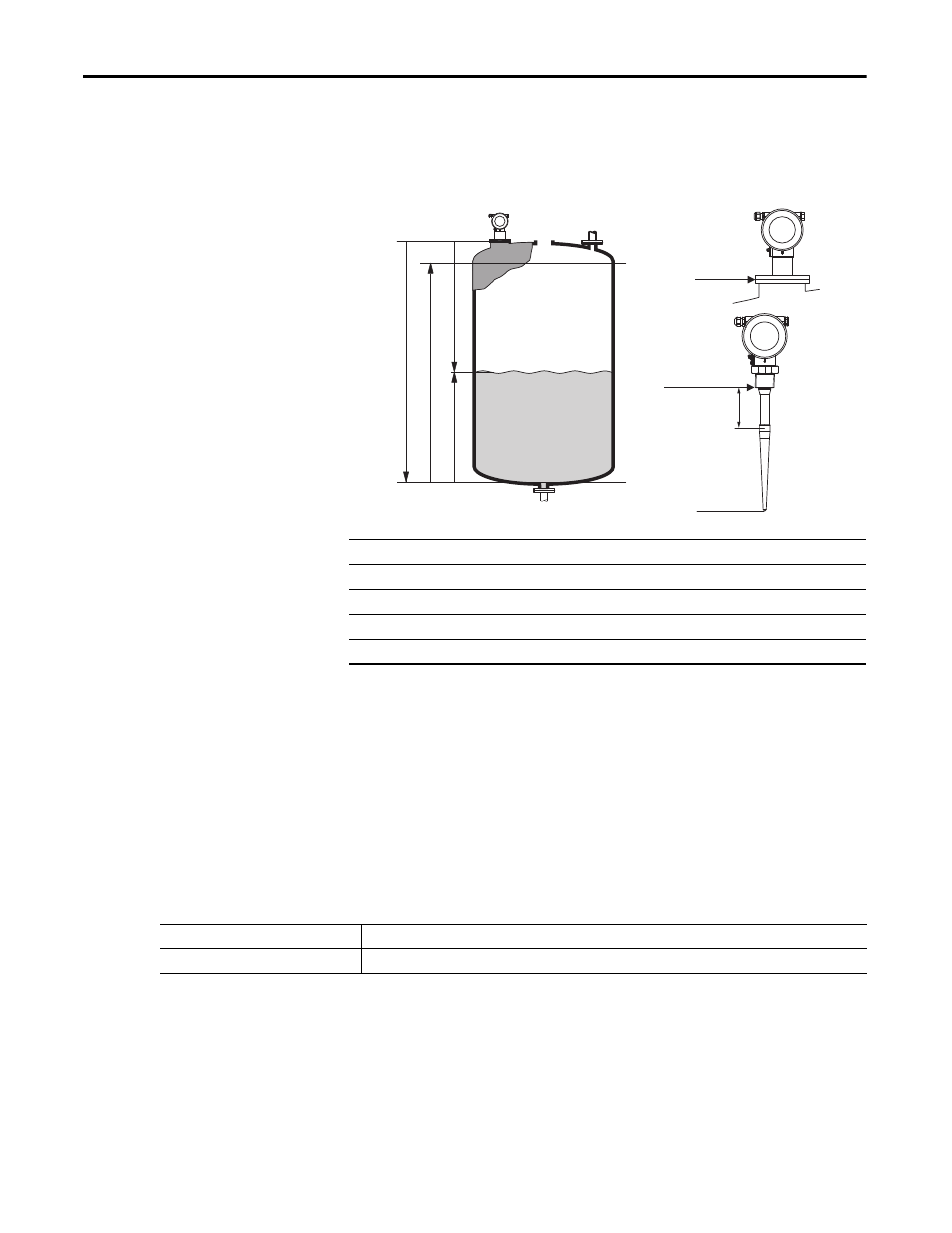

Signals from Instrument to Control System
Item
Description
E
Empty distance
F
Span (full distance)
D
Distance from sensor membrane - product surface
L
Level
20 mA
100%
4 mA
0%
D
L
F
E
flange:
reference point of
measurement
flange:
reference point of
measurement
inactive
length
max.level
threaded
connection
1 ½”
(R 1
:
reference point of
measurement
BSPT
½”)
or 1½ NPT
Signal
Details
Current Output
4...20mA with HART protocol
