Configure the HART Device in FactoryTalk AssetCentre Software

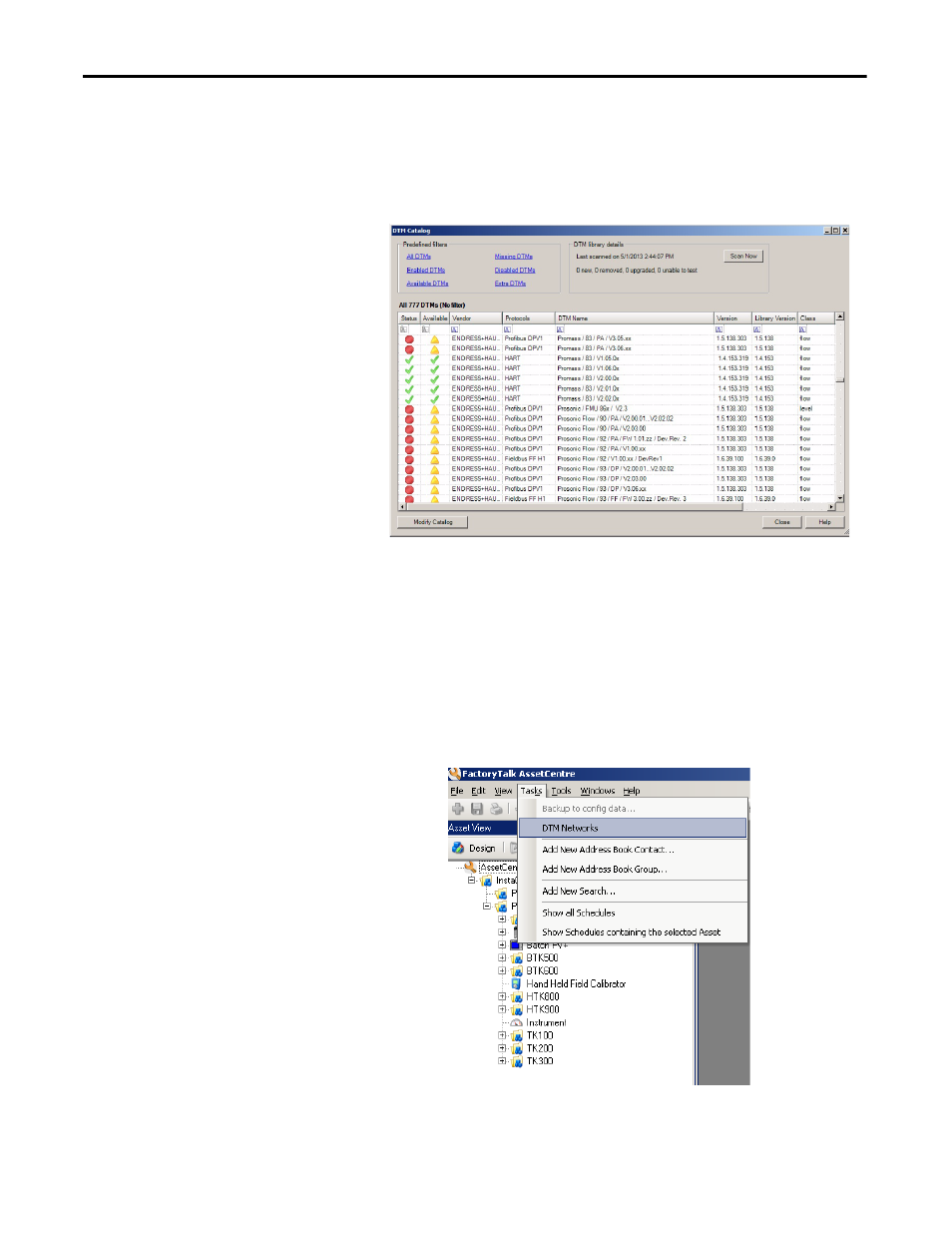

3. Look through the catalog of installed DTMs and look for a green
checkmark on the appropriate DTM.
A yellow triangle indicates that the DTM is found but needs to be
scanned.
4. If necessary, click Scan Now and then verify that the DTMs you installed
exist in the catalog.
5. Close the DTM catalog.
Configure the DTM Network
Path
The network path will vary based on your system. In this example the host
personal computer communicates through a 175 backplane.
1. Choose Tasks > DTM Networks.
