Rockwell Automation 1734sc-IE4CH E+H Instruments via HART to PlantPAx User Manual User Manual
Page 153

Rockwell Automation Publication PROCES-UM002A-EN-P - July 2014
153
Liquiline M CM42 Transmitter
Appendix M

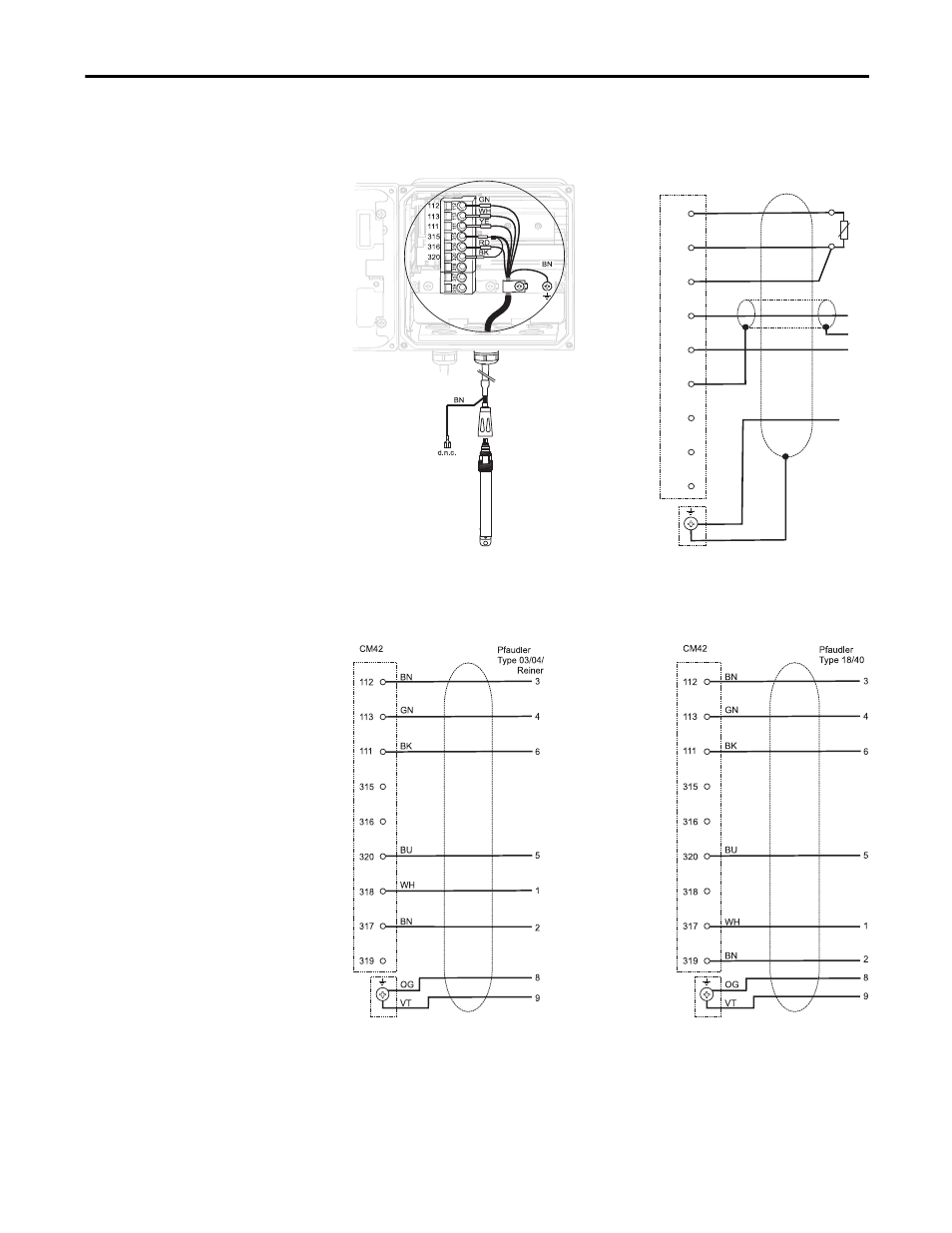

Following are figures of the ISFET sensors without PML view in device (CPU
module) (left) and wiring diagram (right).
Following are figures of the Pfaudler electrode absolute wiring diagram (left) and
the relative wiring diagram (type 18 / type 40 / Reiner) (right).
BK
BN
GN
WH
YE
317
318
112
113
111
319
CM42
315
316
320
RD
Src
Ref
Drn
J
d.n.c.
CPK12
Sensor
