Rockwell Automation Publication PROCES-UM002A-EN-P - July 2014
31
Configure the HART Device in RSLogix 5000 Programming Software
Chapter 2
Configure a HART Input
Module in a POINT I/O System
In RSLogix 5000 software, you must have a project open with a controller already
configured. Make sure the project path is set to the correct controller.

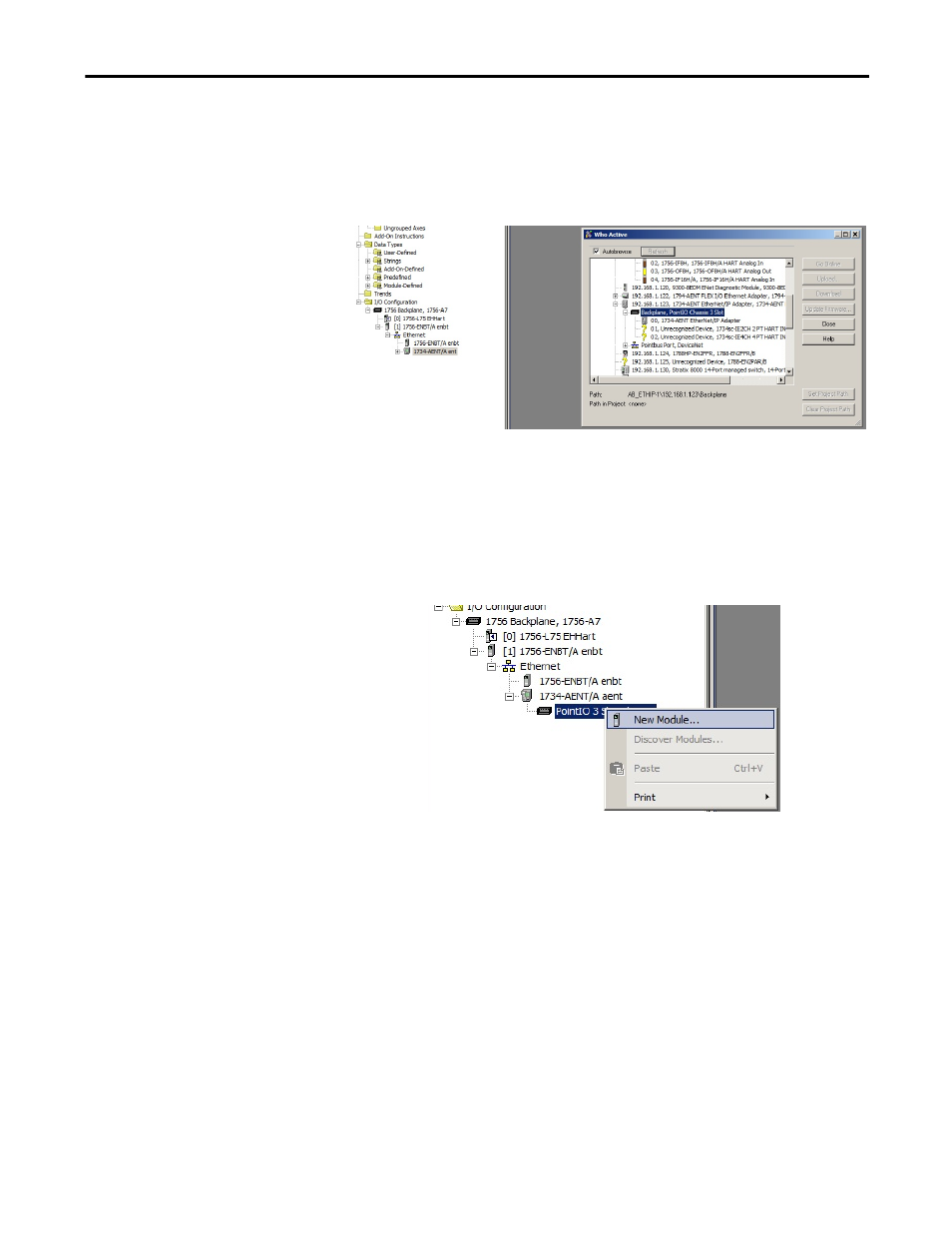

Use RSWHO Active in RSLogix 5000 software to verify that the controller,
HART input module, and devices are active.
To configure the I/O module, follow these steps within the configuration tree.
This example assumes you have a 1756-ENBT interface and a 1734-AENT
adapter.
1. From the configuration tree, right click on the 1734-AENT module and
choose New Module.
