Liquiline M CM42 Transmitter
Appendix M

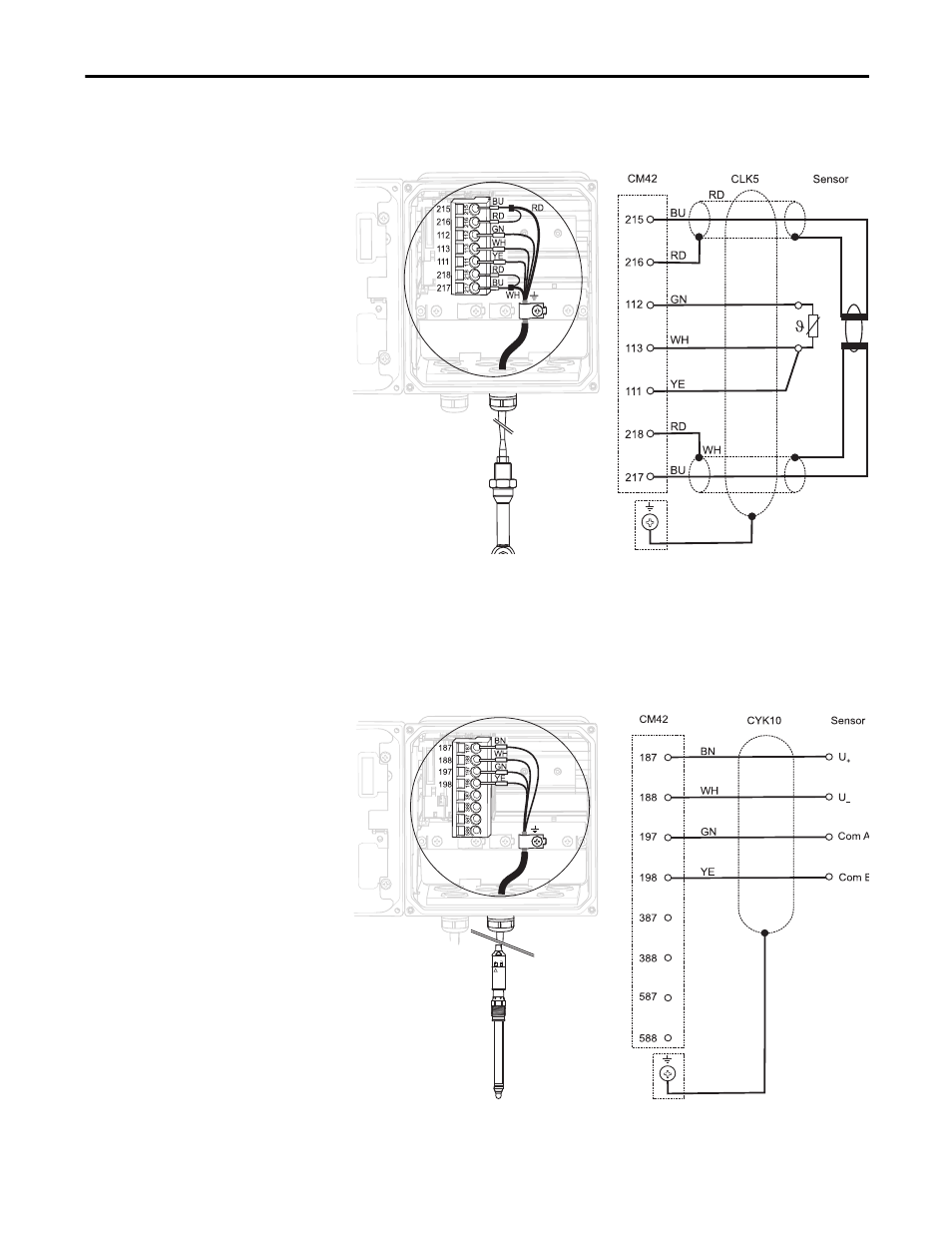

Following are figures of the inductive sensors view in device (left) and wiring
diagram (right).
Sensor Connection: pH / ORP / ISFET / Oxygen (digital sensors)
Following are figures of the sensor connections: pH / ORP / ISFET / oxygen
(digital sensors) view in device (left) and wiring diagram (right).
